NEMA Motor Combination Starter Size 1 10HP 27A 3 Phase 120VAC Coil
Square D

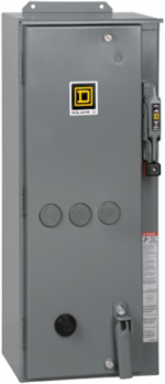

Square D 8538SDA26V02S NEMA Motor Combination Starter Size 1 10HP 27A 3 Phase 120VAC Coil

  • MPN: 8538SDA26V02S
  • UPC: 785901021414
  • PPN: SCH-8538SDA26V02S

CAD

$4456.65

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This NEMA Motor Combination Starter from Schneider Electric is engineered for reliable control in demanding environments. Designed as a Size 1 starter, it is capable of handling motors up to 10HP and features a 27A capacity, ensuring it meets the robust needs of industrial applications. The inclusion of a 120VAC coil enhances versatility, making it suitable for various three-phase setups. Ideal for both automation and control needs, this starter integrates seamlessly into your systems, providing efficient and dependable performance that you can trust in your operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States
ComplianceTAA Compliant

Complementary Attributes

Maximum Horse Power Rating
15-15 hp 460 V AC, 3 phase, 15-15 hp 575 V AC, 3 phase
Control Circuitseparate control circuit

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SC
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase [A4]
5.73235788831937, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
2.8979972845526234, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
1 030 kg CO2 eq., 1030.44868887239
Local Publishable Date
2025-11-18
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
Outside of Europe
End Of Life Doc Ref
ENVEOLI2507019EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Control Type
no control units
Energy Efficiency Optimized
False
Motor Starter Type
non reversing
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
S
Software Version
v6.2.5-6
Thermal Overload Type
melting alloy 3
Pep Code
ENVPEP2507019EN
Pep Verification Date
2025-09-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
[Uc] Control Circuit Voltage
110 V AC 50 Hz120 V AC 60 Hz
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8537109170
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]29 kg CO2 eq., 29.13788950129679
Carbon Footprint Of The Manufacturing Phase [A1 To A3]116 kg CO2 eq., 116.27290044808726
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Circuitseparate control circuit
Disconnector Device Typefusible disconnect switch H, 30 A
Local Signallingno indicator
Number Of Poles3P
Product Or Component TypeCombination Starter
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 184 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %82
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)19.836 kg
Warranty (In Months)18

Environment Attributes Main

Take Back
No
China Rohs Regulation
X
Carbon Footprint
1184.489833994646
Environmental Disclosure
ENVPEP2507019EN
Nema Degree Of Protection
NEMA 12 painted sheet steel with external reset
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-09-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507019EN
Eu Rohs DirectiveCompliant By Exemption
Nema Size2
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
Combination Starter
Range Of ProductS

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
