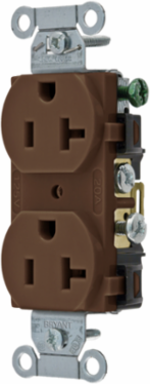

Bryant CRS20 Duplex Receptacle, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, Brown
- MPN: CRS20
- UPC: 781786161054
- PPN: HBL-CRS20
- UNSPSC: 39121406
CAD
$4.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack
Features
- Duplex
- Commercial Grade
- 20A 125V
- 2-Pole 3-Wire Grounding
- 5-20R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.38 in x 1.07 in
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Brown
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.38 in x 1.07 in
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Width
- 1.38 in
- General Literature Asset 2 Display Text
- General Literature - BRYANT® Wiring Devices
- Connectivity
- Side Wired Only
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- CR20B;CRSO20
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.8 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 17.650 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 42.500 in
- Pallet Weight
- 1588.500 lb.
Current / Amperage Rating20 A
Height1.07 in
Standards - RoHS Compliance StatusCM
ApplicationCommercial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextGeneral Literature - Cam-Type Devices and Power Distribution Boxes
General Literature Asset 3 Display TextGeneral Literature - Commercial Grade Receptacles and Switches
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleSmooth Face
Description - InvoiceDUP RCPT,COMM GRD,SIDE,20A 125V,5-20R,BR
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A060
Current Rating20 A
SeriesCommercial
BOX SIZE2.200x8.000x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786161054
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786161053
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
