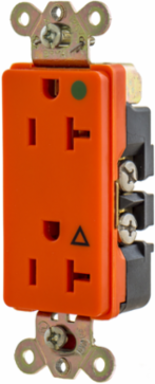

Bryant 9300IG Duplex Hospital Grade Receptacle, Isolated Ground, 20A 125V, 2-Pole 3-Wire, Orange
- MPN: 9300IG
- UPC: 781786741720
- PPN: HBL-9300IG
- UNSPSC: 39121406
CAD
$95.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Decorator Hospital Grade, Isolated Ground, 20A 125V, 2-Pole 3-Wire Grounding, Back and Side Wired, 5-20R, Orange, Single Pack
Features
- Duplex
- Decorator Hospital Grade
- Isolated Ground
- 20A 125V
- 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 1.750 in
- Application
- Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Single Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Healthcare Solutions
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Decorator
- Description - Invoice
- STYLE RCPT, IG, HG, 20A 125V, 5-15R,OR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorOrange
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesIsolated Ground
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.25 lb.
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesStraight Blade
BOX SIZE1.653x4.221x1.878 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786741720
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
