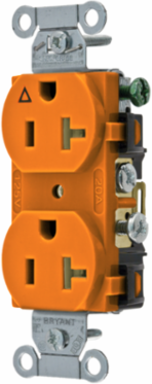

Bryant CR20IG Commercial Grade Duplex Receptacle, 20A 125V, 2-Pole 3-Wire, Isolated Ground, Orange
- MPN: CR20IG
- UPC: 781786734722
- PPN: HBL-CR20IG
- UNSPSC: 39121406
CAD
$74.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Orange, Single Pack, Isolated Ground
Features
- Duplex
- Commercial Grade
- 20A 125V
- 2-Pole 3-Wire Grounding
- 5-20R
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- General Literature Asset 2 Display Text
- General Literature - Heavy Duty Specification Grade Receptacles
- Color
- Orange
- Dimensions
- 3.28 in x 1.38 in x 0.92 in
- Length
- 3.28 in
- Voltage Rating Description
- 125 V
- Width
- 1.38 in
- Application
- Commercial Specification Grade
- Display Size
- Standard Sized Product
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Smooth Face
- Wattage
- 1875
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 20 A
- Series
- Straight Blade
- BOX SIZE
- 2.900x8.500x5.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786734722
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70781786734721
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Poles2-Pole
Size3.28 in x 1.38 in x 0.92 in
General Literature Asset 1 Display TextGeneral Literature - Commercial Grade Receptacles and Switches
Country of OriginChina
Current / Amperage Rating20 A
Height0.92 in
Voltage Rating125 V
Weight0.2 lb.
Amperage Rating15 A
ConnectivityBack and Side Wired
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles2-Pole
PhaseSingle Phase
TypeDuplex Receptacle
Wire Size#14 AWG to #12 AWG
Description - InvoiceDUP RCPT, IG COMM GRD, 20A 125V, OR
Harmonization Code8536690200
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight19.450 lb.
Lowest Level UOMEach
Pallet Height45.500 in
Pallet Weight1069.750 lb.
Certifications
- EU RoHS Indicator
- Yes
