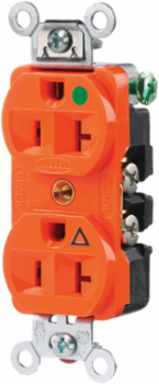

Hubbell Wiring Device-Kellems IG8300 Hospital Grade Duplex Receptacle, 20A 125V, 2-Pole 3-Wire, 3.28 Inch x 1.33 Inch x 1.05 Inch, Orange
- MPN: IG8300
- UPC: 783585778440
- PPN: HBL-IG8300
- UNSPSC: 39121406
CAD
$91.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Back and Side Wired, Single Pack.
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
- Standard
Specifications
Additional
- Amperage
- 20 A
- Horsepower Maximum
- 1 HP
- Number of Poles
- 2-Pole
- Operating Temperature
- -40b0C to 75b0C maximum continuous without impact
- Dielectric Strength
- Withstands 2,000V minimum
- Phase
- Single Phase
- Length
- 3.28 in
- Height
- 1.05 in
- Wire Size
- #12 AWG to #10 AWG
- Material - Mounting Hardware
- Screw Mounting
- Standards / Compliance
- UL Listed UL498, CSA Certified C22.2 No. 42, Fed. Spec. W-C-596, NEMA WD-6, RoHS Compliant
- Country of Origin
- US
- Type
- Duplex Receptacle
Voltage125 V
Wattage1875 W
Number of Wires3-Wire
Current Interrupting CertificationCertified for full rated current
NEMA Rating5-20R
Dimensions3.28 in x 1.33 in x 1.05 in
Width1.33 in
Weight0.25 lb.
MaterialThermoplastic
ConnectivityBack and Side Wired Screw Terminals
EU RoHS IndicatorYes
SeriesExtra Heavy Duty Hospital Grade
StyleFinder Groove Face
