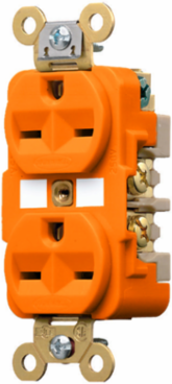

Hubbell Wiring Device-Kellems IG5662 Straight Blade Duplex Receptacle 15A 250V Isolated Ground 3.28 Inch
- MPN: IG5662
- UPC: 783585778556
- PPN: HBL-IG5662
- UNSPSC: 39121406
CAD
$98.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Duplex Receptacle, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Finder Groove Face
- Reduces installation time
- Fully insulated design
- Isolated Ground
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Horsepower - Maximum | 1.5 |
| Length | 3.28 in |
| Standards - RoHS Compliance Status | CM |
| Application | Extra Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 6-15R |
| Number of Wires | 3-Wire |
| Size | 3.28 in x 1.33 in x 1.05 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Voltage Rating | 250 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.2 lb. |
| Connectivity | Back and Side Wired Screw Terminals |
| Nema Rating | 6-15R |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Description - Invoice | DUP RCPT, IG, 15A 250V, 6-15R, OR |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.55 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 27.650 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.05 in |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| Color | Orange |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Type | Standard Duplex |
| Wattage | 3750 W |
| Voltage Rating Description | 250 V |
| Width | 1.33 in |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A060 |
| Current Rating | 15 A |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.500x9.900x4.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585778556 |
| Case - Total Units | 100 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
