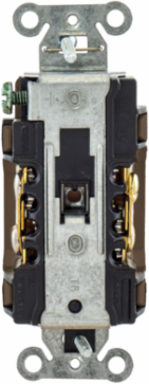

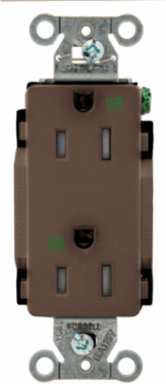

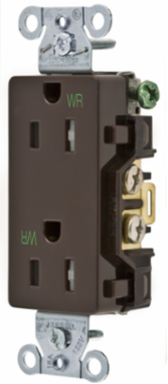

Hubbell Wiring Device-Kellems DR15WRTR Tamper & Weather Resistant Duplex Receptacle 15A 125V 2-Pole 3-Wire
- MPN: DR15WRTR
- UPC: 783585144740
- PPN: HBL-DR15WRTR
- UNSPSC: 39121406
CAD
$25.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Tamper and Weather Resistant Duplex Receptacle, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R
Features
- Weather-resistance complies with national electrical code requirements
- Tamper-resistant shutter complies with national electrical code requirements
- Aesthetic Style Line® decorator design
- Smooth face
- Triple wipe contacts
- Tamper Resistant
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 1.32 in x 1.07 in x 3.28 in |
| Horsepower - Maximum | 0.5 |
| Length | 1.32 in |
| Standards - RoHS Compliance Status | CM |
| Application | Commercial Specification Grade |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Size | 1.32 in x 1.07 in x 3.28 in |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.15 lb. |
| Engineering Drawing 1 Display Text | DR15WRTR AutoCAD Drawing |
| General Literature Asset 2 Display Text | Hubbell Marine Full Line Catalog |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A04A060 |
| Current Rating | 15 A |
| Series | Commercial Specification Grade |
| BOX SIZE | 2.500x8.000x4.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585144740 |
| Case - Total Units | 100 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 3.28 in |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| Color | Brown |
| Environmental Conditions | Weather Resistant |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Tamper Resistant |
| Type | Tamper-Resistant, Weather Resistant |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Width | 1.07 in |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology FAQ |
| Connectivity | Back and Side Wired |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Style | Style Line Decorator |
| Description - Invoice | WTR/TAMP RES, DECO FACE, 15A 125V, BR |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 19.450 lb. |
| Lowest Level UOM | Each |
