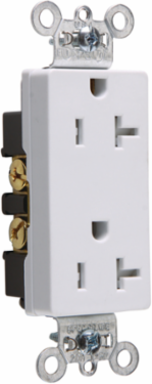

Legrand TR26342W 20A 125V Tamper-Resistant Decorator Duplex Receptacle, White, Side Wire, 3.28 Inch Height
- MPN: TR26342W
- UPC: 785007034929
- PPN: P-S-TR26342W
CAD
$6.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Tamper-Resistant Decorator Duplex Receptacle, White, Side Wire, 3.28 Inch Height
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20A, 125V.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive steel terminal screws. Side wire only.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Additional
| Voltage | 125 V |
|---|---|
| Maximum Working Voltage | 250 V |
| Operating Temperature | -40 C to +60 C |
| Width | 1.37 in |
| Mounting Type | Side Wire |
| Finish | Matte |
| Ground Screw | #8 Hex Tri-Drive Steel, Zinc Coating with Green Chromate |
| Flammability | UL94 V2 |
| Tamper-Resistant | Yes |
| Country of Origin | Mexico |
| Amperage | 20 A |
|---|---|
| Dielectric Withstand Voltage | 2000 V minimum |
| Height | 3.28 in |
| Depth | 0.93 in |
| Material | Nylon, Brass, Zinc-Plated Steel, Steel, Thermoplastic |
| Terminal Screws | #8 Tri-Drive Steel |
| Terminal Accommodation | #14 AWG - #10 AWG copper conductor only |
| Compliance | cULus Listed, UL Listed, CSA Certified |
| Color | White |
| Product Line | Pass & Seymour |
