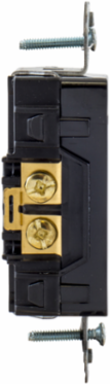

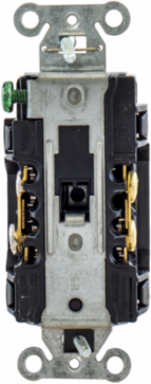

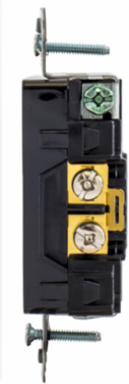

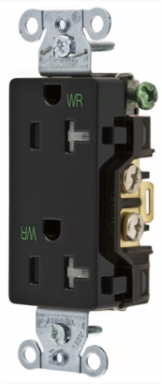

Hubbell Wiring Device-Kellems DR20BLKWRTR Straight Blade Duplex Receptacle 20A 125V, Tamper & Weather Resistant, 3-Wire
- MPN: DR20BLKWRTR
- UPC: 783585144832
- PPN: HBL-DR20BLKWRTR
- UNSPSC: 39121406
CAD
$27.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Tamper and Weather Resistant Duplex Receptacle, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Weather-resistance complies with national electrical code requirements
- Tamper-resistant shutter complies with national electrical code requirements
- Aesthetic Style Line® decorator design
- Smooth face
- Triple wipe contacts
- Tamper Resistant
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- Wattage
- 2500 W
- Dimensions
- 1.32 in x 1.07 in x 3.28 in
- Length
- 1.32 in
- Weight
- 0.2 lb.
- Power Contacts Material
- Brass
- Mounting Strap Material
- Galvanized steel
- Self-Grounding Staple Material
- Stainless steel
- Flammability Rating
- UL 94 V-2
- Industry Standards
- CSA C22.2 No. 42; NEMA WD-6; UL498 E2186
- Device Type
- Straight Blade Duplex Receptacle
- Color
- Black
- Connectivity
- Back and Side Wired
- Weather Resistance
- Yes
- Current Interrupting
- Certified for full rated current
Voltage125 V
Number of Wires3-Wire Grounding
Operating Temperature Range-40°C to 75°C
Width1.07 in
Height3.28 in
MaterialNylon
Wire Clamp MaterialNickel plated steel
Terminal Screws MaterialStainless steel
Mounting Screws MaterialStainless steel
NEMA Rating5-20R
EU RoHS IndicatorYes
PhaseSingle Phase
Country of OriginCN
Tamper ResistanceYes
Terminal Accommodation#12 - #10 AWG copper stranded or solid conductor
