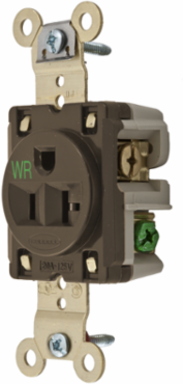

Hubbell Wiring Device-Kellems HBL5361WR Weather-Resistant Single Receptacle, 20A 125V, 2-Pole, Brown
- MPN: HBL5361WR
- UPC: 783585320632
- PPN: HBL-HBL5361WR
- UNSPSC: 39121406
CAD
$79.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Weather-Resistant Single, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack.
Features
- Weather-resistance complies with national electrical code requirements
- Back wired ground terminal allows faster, easier installation
- Finder Groove Face
- Weather Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL5361WR AutoCAD Drawing
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 20 A
- Height
- 1.19 in
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-602;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.63 in x 1.19 in
- Standard
- Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-602;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology FAQ
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.35 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginUnited States
Dimensions3.28 in x 1.63 in x 1.19 in
Horsepower - Maximum1
Length3.28 in
Amperage Rating20 A
ColorBrown
Environmental ConditionsWeather Resistant
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesWeather Resistant- Self Grounding
TypeSingle Receptacle
Wattage2500 W
Voltage Rating Description125 V
Width1.63 in
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceWR RCPT, SING, SB, HD, 20A 125V, BR
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585320632
Case Weight17.350 lb.
Lowest Level UOMEach
