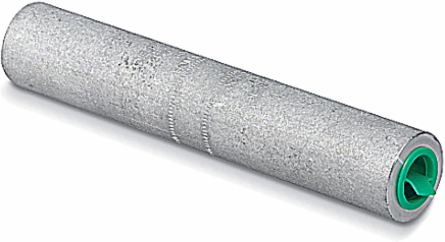

Blackburn AC 350 R 4/0 TN Aluminum Straight Compression Reducing Splice 350 KCMIL-4/0, 8-3/16 Inch
- MPN: AC 350 R 4/0 TN
- UPC: 075114105491
- PPN: T-B-AC 350 R 4/0 TN
CAD
$99.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Straight Reducing Splice, Tin-Plated, Wire size 350 KCMIL-4/0 Stranded, Installing Dies 96,299,1-1/8
Features
- Made of Aluminum for High Strength and High Conductivity.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion. |
| Standard | ANSI C119.4 |
| Connection | Compression/Crimp |
| Number Of Conductors | 2 |
| Finish | Tin-Plated |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Straight Compression Reducing Splice |
| Application | Reducing Cable Splice |
| Size | 8-3/16 inch |
| Conductor Range | 350 to 4/0 |
| Material | Aluminum |
| Insulation | None |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.31 lbs. Each |
| Outer Dimensions (inches) | 7.5x6x6.5 |
|---|
