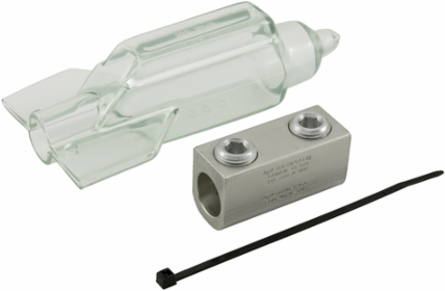

Ilsco SPAR-2 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 2-14, UL, CSA
Ilsco SPAR-2 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 2-14, UL, CSA
- MPN: SPAR-2
- UPC: 0783669857221
- PPN: ILC-SPAR-2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$25.71/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Type Main
- Slotted
- Weight BX (LB)
- 1.3796
Height BX (IN)3.625
Width BX (IN)6.375
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 2 Str - 14 Str
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 2 Str - 14 Str
Conductor Range AL Stranded (Primary, run, main, line)2 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)2 Str - 14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 12
Dual RatedYes
UPC Code78366985722
Specifications
- Height
- 0.958 in
- Weight
- 0.093 lbs
Length3.748 in
Width1.75 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 8 AWG = 40, 2/0 - 2 AWG = 50, 4 - 6 AWG = 45, 10 - 14 AWG = 35
Wire Binding Screw Size5/16
Color
- Color
- Clear
Environment and Temperature
- Temperature Rating
- 90°C
