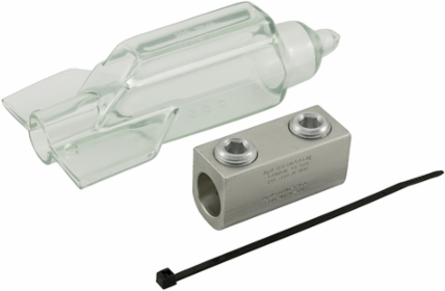

Ilsco SPAR-1/0 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 1/0-14, UL, CSA
Ilsco SPAR-1/0 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 1/0-14, UL, CSA
- MPN: SPAR-1/0
- UPC: 0783669857245
- PPN: ILC-SPAR-1/0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$34.09/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 3/16
- Height BX (IN)
- 3.625
- Length (mm)
- 119.8372
- Width BX (IN)
- 6.375
Drive Type MainInternal Hex
Height (mm)29.2354
Weight BX (LB)0.8978
Width (mm)49.0982
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel
Material and Finish
- Conductor Material
- Copper, Aluminum
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 1/0 Str - 14 Str
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 1/0 Str - 14 Str
Conductor Range AL Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 6
Dual RatedYes
UPC Code78366985724
Specifications
- Height
- 1.151 in | 29.2354 mm
- Weight
- 0.107 lbs
Length4.718 in | 119.8372 mm
Width1.933 in | 49.0982 mm
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 10 - 14 AWG = 35, 2/0 - 3 AWG = 50, 4 - 6 AWG = 45, 8 AWG = 40
Wire Binding Screw Size3/8
Color
- Color
- Clear
Environment and Temperature
- Temperature Rating
- 90°C
