Ilsco

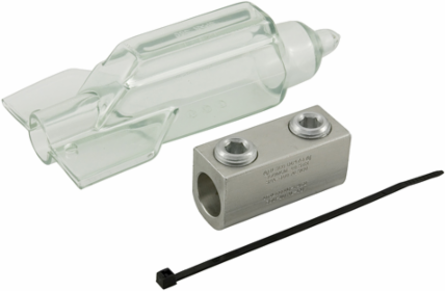

Ilsco SPAR-250 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 250-6, UL, CSA

RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 250-6, UL, CSA
  • MPN: SPAR-250
  • UPC: 0783669857283
  • PPN: ILC-SPAR-250

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$58.87/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Drive Size Main
5/16
Height BX (IN)
3.75
Width BX (IN)
6.5
Drive Type MainInternal Hex
Weight BX (LB)2.5949

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL File Number
E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports Tap
1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel

Material and Finish

Conductor Material
Copper, Aluminum
Insulation
Plastisol
Wire Binding Hardware Finish
Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
250 kcmil - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)
250 kcmil - 6 Str
Conductor Range AL Stranded (Secondary, tap, load)250 kcmil - 6 Str
Conductor Range CU Stranded (Secondary, tap, load)250 kcmil - 6 Str

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-1
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366985728

Specifications

Height
1.431 in
Weight
0.733 lbs
Length5.81 in
Width2.53 in

Bolt and Screw Sizes

Number of Wire Binding Screws per Port
1
Wire Binding Torque
275
Wire Binding Screw Size5/8

Color

Color
Clear

Environment and Temperature

Temperature Rating
90°C

Downloads
