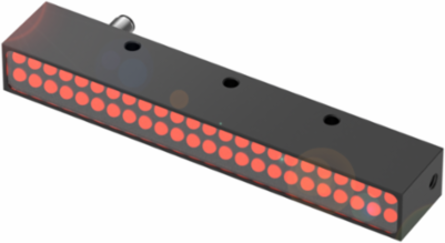

Balluff BAE LX-VS-LR100-S26 LED Strip Light 13 x 18 x 100 mm, 24V, IP54, Red Light
Balluff BAE LX-VS-LR100-S26 LED Strip Light 13 x 18 x 100 mm, 24V, IP54, Red Light
- MPN: BAE LX-VS-LR100-S26
- PPN: BAL-BAE00NT
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$931.62/ EA
Description
Illuminate your workspace with the Balluff LED Strip Light, a robust and efficient lighting solution designed for industrial applications. Measuring 13 x 18 x 100 mm and operating at a voltage of 24V, this strip light delivers an impressive illuminance of 6400 Lux in normal mode and up to 13500 Lux in boost mode, ensuring optimal visibility even in challenging conditions. With an IP54 rating, it is well-suited for environments where dust and water exposure are concerns, while its aluminum anodized black finish adds a touch of durability and style. This versatile lighting fixture operates within a temperature range of -10 to 55 °C and features a beam angle of 75° x 30°, making it ideal for targeted illumination in various settings.
Specifications
- Voltage
- 24 V DC
- Illuminance
- 6400 Lux (Normal), 13500 Lux (Boost mode)
- Temperature Range
- -10 to 55 °C
- Connection
- Connector, M5x0.5 Male, 4-pin, 0.3 m
- Material
- Aluminum anodized black; Glass
- Ingress Rating
- IP54
- Approval/Conformity
- CE, UKCA, WEEE
- Digital Inputs
- Trigger
Current Draw170 mA, 375 mA (Boost mode)
Beam Angle75° x 30°
Dimensions13 x 18 x 100 mm
Illumination Area95 x 10 mm
Light ColorRed (617 nm)
Operating ModeNormal and Boost (continuous operation)
Country of OriginGermany
VersionStrip light
