LED Infrared Strip Light, 875 nm Wavelength, IP54, 13 x 18 x 100 mm
Balluff

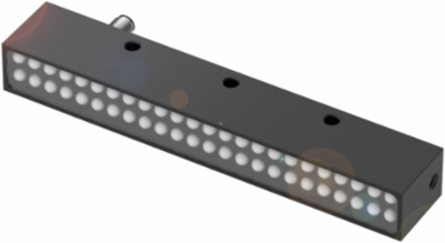

Balluff BAE LX-VS-LI100-S26 LED Infrared Strip Light, 875 nm Wavelength, IP54, 13 x 18 x 100 mm

  • MPN: BAE LX-VS-LI100-S26
  • PPN: BAL-BAE00NU

CAD

$1098.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminate your workspace with the Balluff LED Infrared Strip Light, designed for efficiency and reliability in various applications. With a wavelength of 875 nm and an IP54 rating, this strip light ensures durability and performance even in challenging environments. Its compact dimensions of 13 x 18 x 100 mm make it easy to integrate into your setup, while the 75° x 30° beam angle provides targeted illumination across a 95 x 10 mm area. Engineered from anodized aluminum and glass, it operates effectively within a temperature range of -10 to 55 °C, and features both normal and boost operating modes for enhanced versatility. This product is CE and UKCA approved, ensuring it meets high safety and quality standards.

Documentation & Downloads

Specifications

Additional

Wavelength
875 nm
Beam Angle
75° x 30°
Rated Operating Voltage
24 V DC
Operating Temperature Range
-10 to 55 °C
Connection
Connector, M5x0.5-Male, 4-pin, 0.3 m
Light Type
LED Infrared
Operating Mode
Normal (continuous operation); Boost (continuous operation with cooling)
Version
Strip light
IP RatingIP54
Illuminated Area95 x 10 mm
Current Draw Max170 mA, 375 mA (Boost mode)
Dimensions13 x 18 x 100 mm
MaterialAluminum anodized, black; Glass
Digital InputsTrigger
ComplianceCE; UKCA; WEEE
Country of OriginGermany
