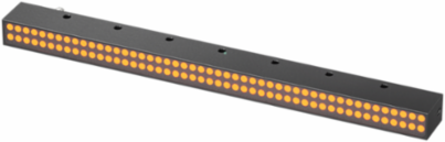

Balluff BAE LX-VS-LI200-S26 Strip lights - BAE00NZ
Balluff BAE LX-VS-LI200-S26 Strip lights - BAE00NZ
- MPN: BAE LX-VS-LI200-S26
- PPN: BAL-BAE00NZ
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1334.41/ EA
Description
Strip lights - BAE00NZ
Specifications
Specifications
- Country of Origin
- Germany
- Version
- Strip light
- Rated operating voltage Ue DC
- 24 V
- Operating mode
- Normal (continuous operation); Boost (continuous operation with cooling)
- Material
- Aluminum anodized, black; Glass
- Light type
- LED Infrared
- Beam angle
- 115 ° x 35 °
- Approval/Conformity
- CE; UKCA; WEEE
ConnectionConnector, M5x0.5-Male, 4-pin, 0.3 m
Dimension13 x 18 x 200 mm
Current draw max.290 mA, 710 mA (Boost mode)
Digital inputsTrigger
Illumination area195 x 10 mm
Wave length875 nm
Ambient temperature-10...55 °C
IP rating per IEC 60529IP54
