Balluff

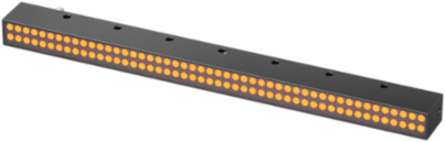

Balluff BAE LX-VS-LW200-S26 LED Strip Light 5600 K, 200 mm, IP54, Aluminum Anodized, White Light

LED Strip Light 5600 K, 200 mm, IP54, Aluminum Anodized, White Light
  • MPN: BAE LX-VS-LW200-S26
  • PPN: BAL-BAE00P0

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1195.93/ EA

Description

Illuminate your workspace with the Balluff LED Strip Light, a high-performance lighting solution designed for versatility and durability. Featuring a color temperature of 5600 K and an impressive beam angle of 120° x 40°, this strip light delivers bright, white illumination that enhances visibility in various environments. Constructed from anodized aluminum and equipped with a robust IP54 rating, it is built to withstand challenging conditions while maintaining a sleek appearance. With options for normal and boost operating modes, this light can adapt to your specific needs, providing up to 7850 Lux in boost mode for tasks requiring intense brightness. The compact dimensions of 200 mm in length and a maximum current draw of 450 mA in boost mode ensure efficient performance, making it an ideal choice for both continuous operation and demanding applications. Whether you're enhancing a work area or integrating it into a larger system, this LED strip light from Balluff is engineered to deliver reliability and efficiency.

Specifications

Current draw max.
170 mA, 450 mA (Boost mode)
Color temperature
5600 K
Illuminance (0.1 m)
3000 Lux, 7850 Lux (Boost mode)
Dimension
13 x 18 x 200 mm
Material
Aluminum anodized black, Glass
Ambient temperature
-10 to 55 °C
Connection
Connector, M5x0.5-Male, 4-pin, 0.3 m
Operating mode
Normal (continuous), Boost (continuous with cooling)
Light type
LED White light
Rated operating voltage24 V DC
Beam angle120° x 40°
Length200 mm
Illumination area195 x 10 mm
IP ratingIP54
Approval/ConformityCE, UKCA, WEEE
Country of OriginGermany
Digital inputsTrigger
VersionStrip light
