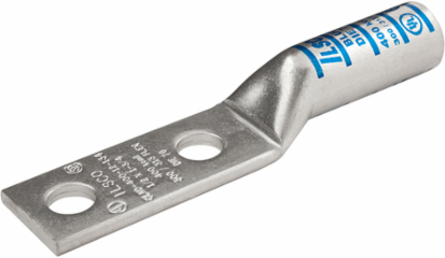

ILSCO CLND-2-10-34 Surecrimp Copper Compression Lug, Conductor Size 2, 2 Holes, #10 Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
- MPN: CLND-2-10-34
- UPC: 783669633344
- PPN: ILC-CLND-2-10-34
- UNSPSC: 39121448
CAD
$16.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 0.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 2 Sol, 2 Str, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index I-33,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366963334
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 2 Sol
- Expanded Conductor Range
- 2 Str - 6 Str
- Length (IN)
- 2.848
- Width (IN)
- 0.599
- Height (IN)
- 0.451
- Weight (LB)
- 0.054441211
- Barrel Length (mm)
- 28.575
- Dimension G (mm)
- 6.5532
- Inside Diameter (mm)
- 7.9248
- Mounting Hole Diameter (mm)
- 5.5626
- Mounting Hole Spacing (mm)
- 19.05
- Outside Diameter (mm)
- 10.6934
- Tang Length (IN)
- 1.437
- Tang Thickness (IN)
- 0.109
- Tang Width (IN)
- 0.599
- Material
- Copper
- Connector Finish
- Tin
- Die Color Code
- Brown
- Temperature Rating
- 90°C
- CSA File Number
- LR-29601
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed,UL 467 Listed
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Barrel Type
- Long
- Connecting angle
- 180°
- Contains DE-OX
- FALSE
- Flared End
- FALSE
- Narrow Tang
- FALSE
- Sight Window
- FALSE
- Tang End Shape
- Square
- Bag Quantity
- 1
UNSPSC Code39121448
Conductor Range CU Stranded (Primary, run, main, line)2 Str
Conductor Size CU (Primary, run, main, line)2 Sol,2 Str
Expanded Conductor Size2 Str,3 Str,4 Str,5 Str,6 Str
Length (mm)72.3392
Width (mm)15.2146
Height (mm)11.4554
Barrel Length (IN)1.125
Dimension G (IN)0.258
Inside Diameter (IN)0.312
Mounting Hole Diameter (IN)0.219
Mounting Hole Spacing (IN)0.75
Outside Diameter (IN)0.421
Strip Length (mm)30.1498
Tang Length (mm)36.4998
Tang Thickness (mm)2.7686
Tang Width (mm)15.2146
Conductor MaterialCopper
ColorSilver
Direct BurialTRUE
Voltage Rating35 kV
CSA StandardC22.2 No. 65-03
UL File NumberE6207
NEBS RatingLevel 3
Barrel MarkingInk
ConnectionCompression
Conductor TypeSolid,Stranded
ILSCOs Die Catalog NumberILD-33
Mounting Hole TypeThru
Number of Mounting Holes2
SlottedFALSE
UndrilledFALSE
CrossSellTB-6DF1000-P, ILD-33, DE-OX-8OZ
