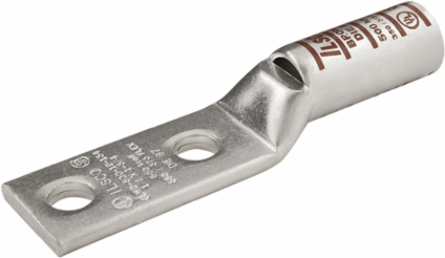

ILSCO CLWD-4-10-1 Surecrimp Copper Compression Lug, Conductor Size 4, 2 Holes, #10 Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CLWD-4-10-1
- UPC: 783669630718
- PPN: ILC-CLWD-4-10-1
- UNSPSC: 39121448
CAD
$18.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 1 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 4 Sol, 4 Str, sight window, Square tang end, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366963071
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 4 Sol
- Expanded Conductor Range
- 4 Str - 6 Str
- Length (IN)
- 3.046
- Width (IN)
- 0.486
- Height (IN)
- 0.373
- Weight (LB)
- 0.039920266
- Barrel Length (mm)
- 28.575
- Dimension G (mm)
- 6.5532
- Inside Diameter (mm)
- 6.35
- Mounting Hole Diameter (IN)
- 0.219
- Mounting Hole Spacing (IN)
- 1
- Outside Diameter (IN)
- 0.343
- Strip Length (mm)
- 30.1498
- Tang Length (mm)
- 42.8498
- Tang Thickness (mm)
- 2.3622
- Tang Width (mm)
- 12.3444
- Conductor Material
- Copper
- Color
- Silver
- Direct Burial
- TRUE
- Voltage Rating
- 35 kV
- CSA Standard
- C22.2 No. 65-03
- UL File Number
- E6207
- NEBS Rating
- Level 3
- Barrel Marking
- Ink
- Connection
- Compression
- Conductor Type
- Solid,Stranded
- ILSCOs Die Catalog Number
- ILD-29
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Slotted
- FALSE
- Undrilled
- FALSE
- CrossSell
- ILD-29, DE-OX-8OZ, TB-6DF1000-P
UNSPSC Code39121448
Conductor Range CU Stranded (Primary, run, main, line)4 Str
Conductor Size CU (Primary, run, main, line)4 Sol,4 Str
Expanded Conductor Size4 Str,5 Str,6 Str
Length (mm)77.3684
Width (mm)12.3444
Height (mm)9.4742
Barrel Length (IN)1.125
Dimension G (IN)0.258
Inside Diameter (IN)0.25
Mounting Bolt/Stud Size (mm)254
Mounting Hole Diameter (mm)5.5626
Mounting Hole Spacing (mm)25.4
Outside Diameter (mm)8.7122
Tang Length (IN)1.687
Tang Thickness (IN)0.093
Tang Width (IN)0.486
MaterialCopper
Connector FinishTin
Die Color CodeGray
Temperature Rating90°C
CSA File NumberLR-29601
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed,UL 467 Listed
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Barrel TypeLong
Connecting angle180°
Contains DE-OXFALSE
Flared EndFALSE
Narrow TangFALSE
Sight WindowTRUE
Tang End ShapeSquare
Bag Quantity1
