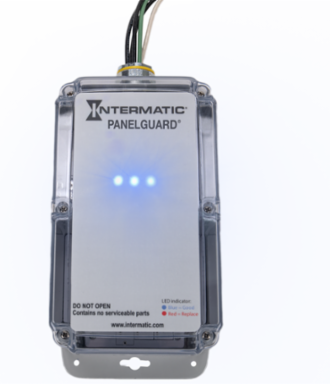

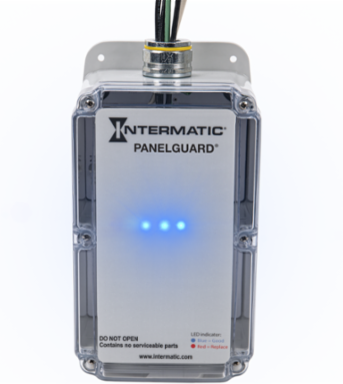

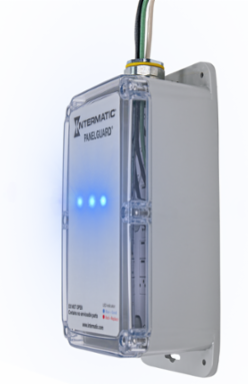

Intermatic H10S13Y1DG2 Surge Protective Device, 7-Mode, 120/208 VAC, Type 1, 100kA
- MPN: H10S13Y1DG2
- UPC: 078275152083
- PPN: INT-H10S13Y1DG2
- UNSPSC: 39121634
CAD
$1306.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Features
- Type 1 surge protection
- Optional audible alarm and dry relay contacts
- 7 Modes of protection
- NFPA 780, UL 96A Lightning system protection compliant

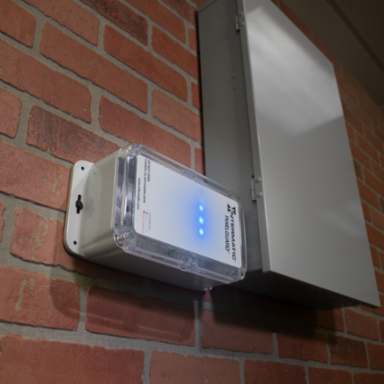

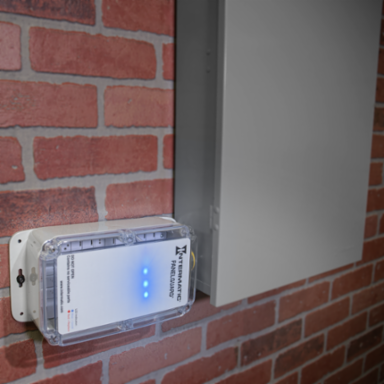

- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Blue LED status indicator per phase, red LED service indicator
- UL Listed to ANSI/UL 1449 5th Edition
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 10-Year limited
- Applications
- Distribution Panel;Service Entrance
- Height
- 10.59 in
- Width
- 5.25 in
- Country of Origin
- Mexico
ColorGray
Marketing DescriptionIntermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Weight0.6 lbs
Depth3.29 in
