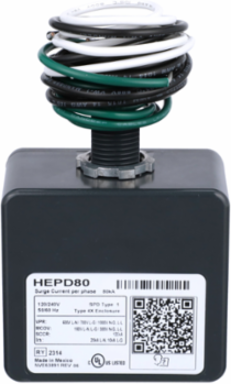

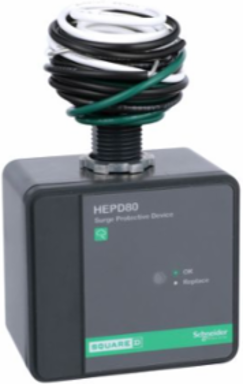

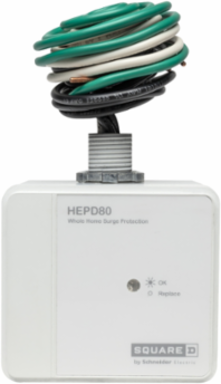

Square D HEPD80 Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
- MPN: HEPD80
- UPC: 785901008729
- PPN: SCH-HEPD80
CAD
$245.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is UL listed and CSA rated. This product comes with an 5 years warranty.
Features
- The 80kA per phase surge current rating is significantly higher than most plug-in surge strips. While a standard power bar might handle a small spike, the HEPD80 is built to divert massive amounts of excess energy safely to the ground before it ever reaches your expensive devices. This high capacity ensures the unit can withstand multiple smaller surges over its lifetime without needing replacement.
- The unit is housed in a NEMA Type 4X non-metallic enclosure. This rating means it is watertight, dust-tight, and corrosion-resistant. For many Canadian homes where the electrical panel is in a damp basement or even mounted outdoors (common in some BC or coastal regions), the 4X rating provides peace of mind that the device will remain functional in harsh environments.

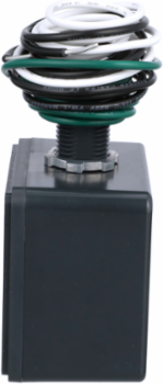

- One of the best features of the HEPD80 is that it is not brand-specific. While made by Square D, its nipple-mount design allows it to be attached to any brand of electrical panel (Siemens, Eaton, ABB, etc.) via a standard 1/2-inch knockout. This makes it an ideal universal upgrade for any Canadian residence regardless of the existing panelboard manufacturer

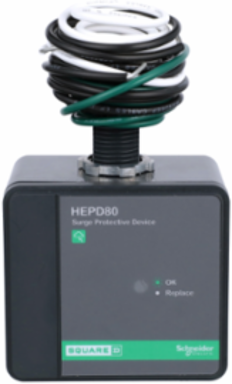

- The unit features a bright Green LED on the front cover. When the LED is lit, the device is active and providing protection. If the LED goes out, the internal components have sacrificed themselves to stop a major surge, and the unit needs to be replaced. This simple visual cue ensures you never have to wonder if your home is still protected.

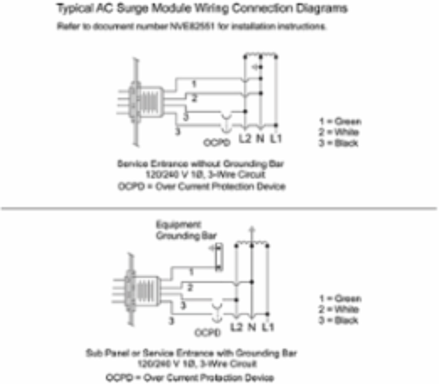

- While it can be "hard-wired" directly to the bus, Schneider recommends connecting the two black wires of the HEPD80 to a 20-Amp 2-pole circuit breaker. Using a breaker allows for a dedicated disconnect point and makes future replacement much safer and easier without having to shut down the main power to the entire house.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
Depth2.10 in
Physical Attributes
- Cable Length
- 34 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Local Signalling
- 1 LED green normal operation, 1 LED green off
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2077596439627771, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.005336280948537016, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 236 kg CO2 eq., 235.6685386818315
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Device Type
- Surge Protection and Power Conditioning - Surge Protection Devices
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Device Short Name
- HEPD
- Energy Efficiency Optimized
- False
- Phase
- 1 phase
- Product Destination
- load center
- Range Of Product
- Square D
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 240 kg CO2 eq.
- Pep Code
- ENVPEP2510004EN
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 9

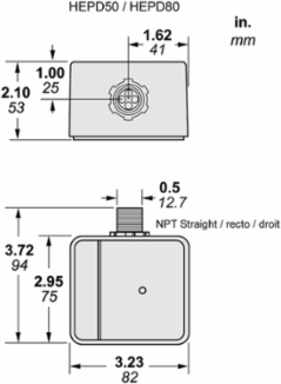

- Width Nominal
- 3.72 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Short-circuit Protection
- 25 kA
- Package Weight(Lbs)
- 433.180 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Certificate AgencyUL 1449, cULUL 1449:ed. 4: type I
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9636368027255402
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.255962081039953
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2510004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Enclosure Materialnon-metallic
Nominal Discharge Current10 kA
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesurge protection device
ReturnabilityYes
Sustainable PackagingYes
Wiring Configuration3-wire (isolated ground)
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal3.23 in
[Uc] Maximum Continuous Operating Voltage150 V
Connections - Terminalswire 14 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2510004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-40-65 °C, -40-65 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint240.10123349050832
Environmental DisclosureENVPEP2510004EN
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2510004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Square D
Product Or Component Typesurge protection device
Surge Protection And Filtering Attributes
- Surge Arrester Type
- electrical distribution network
Surge Current80 kA per phase
Contractual Warranty Attributes
- Warranty Period
- 5 years
Warranty5 years
Input Attributes
- Input Voltage
- 600 V L-N, 600 V L - G1000 V L - L900 V N - G
