Schneider Electric

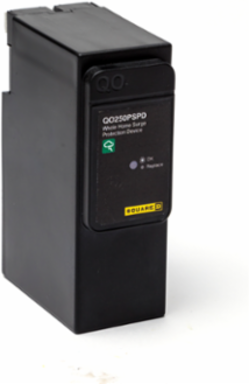

Schneider Electric CQO250PSPD Surge Protect - QO - 50kA - 120/240VAC - 1P3W - T2 - CSA

Surge Protect - QO - 50kA - 120/240VAC - 1P3W - T2 - CSA
  • MPN: CQO250PSPD
  • UPC: 785901520795
  • PPN: SCH-CQO250PSPD

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Looking to buy a large quantity?

    To view product inventory

    CAD$162.23/ EA

    Description

    QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This is a plug on neutral surge protective device for Homeline load centers. Designed for 3 wire 12/24 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 5 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.6 inches. This surge protection device is CSA certified

    Specifications

    Complementary

    Height
    101 mm
    Short-Circuit Protection
    22 kA
    Surge Current
    50 kA
    Width
    38 mm
    Nominal Discharge Current
    20 kA
    Product Destination
    load center QO plug-on neutral
    Connections - Terminalsplug in phase and neutral
    [Uc] Maximum Continuous Operating Voltage150 V
    Wiring Configuration3-wire
    Depth66 mm
    Network Number Of Phases1 phase
    [Ue] Rated Operational Voltage120/240 V AC

    Specifications

    Range Of Product
    QO
    Product Or Component Typesurge protection device

    Environment

    Ambient Air Temperature For Operation
    65-65 °C
    Enclosure Material
    black plastic
    Nema Degree Of ProtectionNEMA 2
    StandardsUL 1449:ed. 4 || CSA C22.2 No 269.1

    Offer Sustainability

    Circularity Profile
    ENVEOLI1706015EN
    Eu Rohs Directive
    Not compliant
    Environmental DisclosureENVPEP1706015EN
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Downloads
