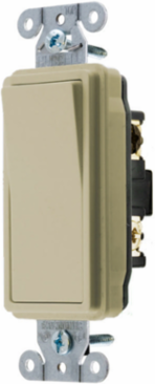

Hubbell Wiring Device-Kellems DS315I Three Way Decorator Switch 15A 120/277V, 3.91 in x 1.41 in x 1.01 in
- MPN: DS315I
- UPC: 783585108339
- PPN: HBL-DS315I
- UNSPSC: 39122226
CAD
$9.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decorator Switch, Specification Grade, Three Way, 15A 120/277V AC, Back and Side Wired
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.91 in x 1.41 in x 1.01 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- SPDT
- Color
- Ivory
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.41 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Three Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL2103I
- Current Rating
- 15 A
- Series
- General Purpose
- BOX SIZE
- 3.600x9.900x4.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585108339
- Case Weight
- 9.550 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 859.500 lb.
- NAICS Code
- 3359315101
Current / Amperage Rating15 A
Height1.01 in
Length3.91 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating15 A
Number of PolesSingle Pole
Size3.91 in x 1.41 in x 1.01 in
TypeRocker/Decorator
Weight0.2 lb.
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSWITCH, DECO SER, 3W, 15A 120/277V, IV
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A255
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585108338
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
