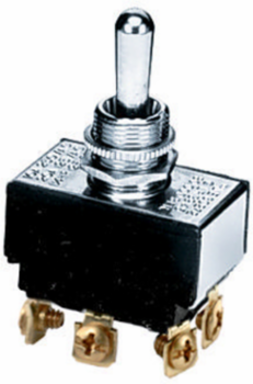

Hubbell Wiring Device-Kellems HBL223SPMM Momentary DPDT Bat Handle Switch, 10A 250V, 2.27 Inch Length
- MPN: HBL223SPMM
- UPC: 783585017150
- PPN: HBL-HBL223SPMM
- UNSPSC: 39122239
CAD
$39.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Double Pole DoubleThrow Center Off 10A 250V/10A
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.27 in x 0.76 in x 1.3 in
- Horsepower - Maximum
- 1.5
- Length
- 2.27 in
- Performance
- Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
- Amperage Rating
- 10/20 A
- Contact Configuration
- Momentary
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 250/125 VAC
- Width
- 0.76 in
- Action
- DPDT
- Style
- Spade Terminal
- Description - Invoice
- PANEL SW, DPDT, MOM CTR OFF, SPADE TERM
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359315102
Current / Amperage Rating10/20 A
Height1.3 in
Industry Standard(s)UL Listed
Mounting MethodPanel Mount
Standards - RoHS Compliance StatusCM
ColorMetallic
Number of PolesDouble Pole
Size2.27 in x 0.76 in x 1.3 in
TypeMomentary
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL223SPMM AutoCAD Drawing
Number Of PolesDouble Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number223SPMM
SeriesDouble Pole/Double Throw
BOX SIZE3.300x4.800x2.900 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585017150
Case Weight6.630 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
