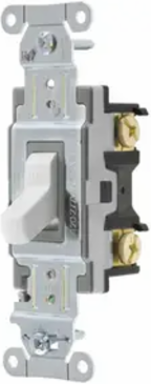

Hubbell Wiring Device-Kellems CSB215W Double Toggle Switch 15A 120/277V AC, Dual Pole, Back & Side Wired, White
- MPN: CSB215W
- UPC: 783585153858
- PPN: HBL-CSB215W
- UNSPSC: 39122211
CAD
$13.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Double Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, White
Features
- Commercial Grade Durability:Built to withstand the demands of commercial environments
- Double Pole Functionality:Allows control of two circuits simultaneously
- 15A, 120/277V AC Compatibility:Suitable for a wide range of electrical applications
- Back and Side Wiring Options:Provides flexibility in installation methods
- Sleek White Finish:Enhances visibility and complements various decor styles
- Robust Construction:Ensures long-lasting performance and reliability
- Easy Installation:Designed for quick and straightforward setup
- Versatile Use:Ideal for controlling lighting and other electrical fixtures in commercial settings
- The Double Toggle Switch offers robust commercial-grade construction and dual-pole functionality, ensuring reliable control and versatility for various electrical applications in commercial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 15 A
- Number of Poles
- Double Pole
- Size
- 4.18 in x 1.49 in x 1.83 in
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.49 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Double Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, COMM, DP, 15A 120/277V, B+S, WH
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 15 A
- Series
- General Purpose
- BOX SIZE
- 3.700x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585153858
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585153857
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Height1.83 in
Length4.18 in
Temperature Rise - Max.30°C maximum at rated current
ColorWhite
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Special FeaturesThe Double Toggle Switch offers robust commercial-grade construction and dual-pole functionality, ensuring reliable control and versatility for various electrical applications in commercial settings.
TypeToggle
Weight0.15 lb.
Engineering Drawing 1 Display TextCSB215W AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleDouble Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A250
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.300 lb.
Lowest Level UOMEach
Pallet Height46.800 in
Pallet Weight834.300 lb.
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- Yes
