Leviton 1286 20 Amp Double-Pole Toggle Switch, Maintained Contact, 120/277V AC, Extra Heavy Duty
- MPN: 1286
- UPC: 078477168288
- PPN: LEV-1286
CAD
$153.96
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

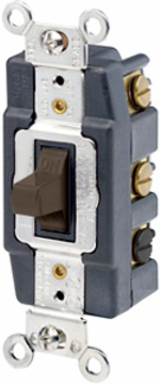

20 Amp, 120/277 Volt, Toggle Double-Throw Ctr-OFF Maintained Contact Double-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Grounding, Back & Side Wired, - Brown
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| RoHS | Compliant |
| UL Standard | UL 20 |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| NOM | 057 |
| UL Fed Spec WS896E | File #E7458 |
| Warranty | 10-Year Limited |
Material Specifications
| Base Material | Thermoplastic |
|---|---|
| Contact Material | Silver Alloy |
| Ground Clips | Brass |
| Strap Material | Steel |
| Toggle | Polycarbonate |
| Color | Brown |
|---|---|
| Cover Material | Thermoplastic |
| Grounding Screw | Brass 8-32 |
| Terminal Screws | Brass 8-32 |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
Product Features
| Body Material | Thermoplastic |
|---|---|
| Feature | Maintained Contact CTR OFF |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Device Type | Toggle Switch |
|---|---|
| Function | Double-Pole Double-Throw |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 65°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Endurance | 50,000 cycles minimum |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Voltage | 120/277 VAC |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Maximum 30 degrees C rise |
AC Horsepower Ratings
| HP Rating | 1HP-120V 2HP-240V-277V |
|---|
| Max. Amperage | 16 Amp |
|---|
