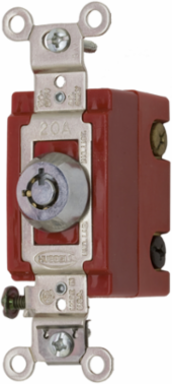

Hubbell Wiring Device-Kellems HBL1224RKL Industrial Grade Locking Switch, 20A 120/277V AC, 4 Way, Chrome
Hubbell Wiring Device-Kellems HBL1224RKL Industrial Grade Locking Switch, 20A 120/277V AC, 4 Way, Chrome
- MPN: HBL1224RKL
- UPC: 783585432137
- PPN: HBL-HBL1224RKL
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$282.26/ EA
Description
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Chrome
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 4.06 in x 1.25 in x 2.02 in
- Height
- 2.02 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 20 A
- Color
- Chrome
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Number Of Poles
- Double Pole
- Style
- Four Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 4.495x10.185x5.185 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585432137
- Case - Total Units
- 40 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width2.170 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
ActionDPDT
ApplicationBack and Side Wired
Size4.06 in x 1.25 in x 2.02 in
TypeLocking
Voltage Rating Description120-277 VAC
Width1.25 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#14 AWG to #10 AWG
Description - Invoice4 WAY TOG, IND GRD, 20A 120/277V, LOCK
Harmonization Code8536509040
MSDS FlagNo
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.25 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight8.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
