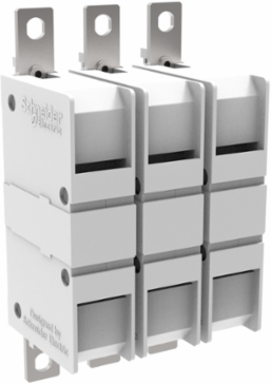

Schneider Electric LA9G3SA TeSys Giga Switching Module Kit for LC1G400-500, 3 Pole, -25 to 60 C
- MPN: LA9G3SA
- PPN: SCH-LA9G3SA
CAD
$1899.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These accessories are switching module for TeSys Giga 400-500 contactor. It is used to 3 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Poles Description
- 3P
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Number Of Poles
- 3P
- Product Or Component Type
- switch module
- Range
- TeSys
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Type
- kit
- Maximum [Ie] Rated Operational Current
- 700 A AC-1 <= 440 V 40 °C500 A AC-3 <= 440 V 40 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyEN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
Local Publishable Date2026-07-15
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameLA9G
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 3
Range Of ProductTeSys G
Sustainable PackagingYes
Pep CodeENVPEP2105013EN
Connections - Terminalsbolted connection
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)4.601 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m) without power derating5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2105013EN
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Product CompatibilityLC1G400...500, LC1G400...500
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- switch module
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
