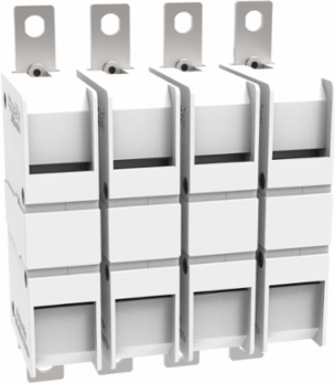

Schneider Electric LA9G4QA TeSys Giga Switching Module Kit, 4 Poles, 11.3 kg, -25 to 60°C

MPN: LA9G4QA
PPN: SCH-LA9G4QA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1281.69/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are switching module for TeSys Giga 115-225 contactor. It is used to 4 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Product Or Component Type: switch module

Quantity Per Set: set of 4

RangeTeSys

Device Short NameLA9G

Complementary

Connections - Terminals: bolted connection

Net Weight: 11.3 kg

Depth: 272-272 mm

Width: 284 mm

Accessory / Separate Part Type: kit

Height127.5 mm

Maximum [Ie] Rated Operational Current330 A AC-1 <= 440 V 40 °C

Poles Description4P

Product CompatibilityLC1G115...225

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

China Rohs Regulation: X

Eu Rohs Directive: Compliant with Exemptions

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Halogen Content PerformanceHalogen free plastic parts product

Environment

Ambient Air Temperature For Operation: -25-60 °C

Pollution Degree: 3 IEC 60947-1

Operating Altitude: 3000 m without power derating || 5000 m with derating factor

StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Ambient Air Temperature For Storage-60-80 °C
