Schneider Electric

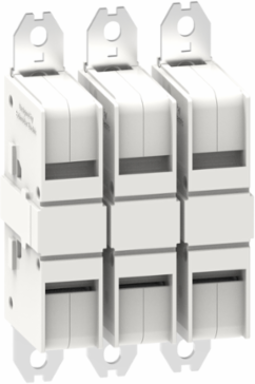

Schneider Electric LA9G3RA TeSys Giga Switching Module Kit for LC1G265-330, 3 Pole, 440 A AC-1

TeSys Giga Switching Module Kit for LC1G265-330, 3 Pole, 440 A AC-1
  • MPN: LA9G3RA
  • PPN: SCH-LA9G3RA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1369.38/ EA

Description

These accessories are switching module for TeSys Giga 265-330 contactor. It is used to 3 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2105013
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product

Specifications

Quantity Per Set
set of 3
Device Short Name
LA9G
Product Or Component Typeswitch module
RangeTeSys

Complementary

Maximum [Ie] Rated Operational Current
440 A AC-1 <= 440 V 40 °C || 330 A AC-3 <= 440 V 40 °C
Poles Description
3P
Accessory / Separate Part Type
kit
Connections - Terminalsbolted connection
Product CompatibilityLC1G265...330

Environment

Ambient Air Temperature For Operation
-25-60 °C
Ambient Air Temperature For Storage
-60-80 °C
Operating Altitude
3000 m without power derating || 5000 m with derating factor
Pollution Degree3 IEC 60947-1
StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4
