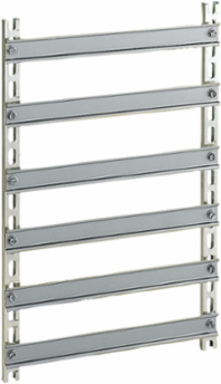

Schneider Electric NSYMD75 Symmetrical Mounting Chassis 6 Rails, H700 x W500 mm, Aluminium & Steel

MPN: NSYMD75
PPN: SCH-NSYMD75
UNSPSC: 39121323

$213.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric s Symmetrical Mounting Chassis is engineered to provide robust structural support for your automation and control needs. With its six rails, this chassis offers ample flexibility for mounting various components, making it an ideal choice for data and communication applications. Crafted from a combination of aluminum and steel, the unit not only ensures durability but also promotes effective heat dissipation and stability within IT enclosures and racks. This versatile mounting solution stands at 700 mm in height and 500 mm in width, making it suitable for diverse configurations in critical environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Width	17.72 in

Height	27.56 in

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Mounting Support	direct fixing on backstuds, step slide, spacer
Local Publishable Date	2026-04-15
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Adjustment	on step slides, type NSYSDCR…, pitch 12.5 mm
Device Composition	fixing elements6 DIN rail2 upright
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Type Of Rail	symmetrical DIN
Height Useful	nominal: 700 mm
Width Real	real: 450 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Fixing Mode	screwed on backstuds, by fixing element
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Material	uprights aluminiumrail galvanized steel
Product Or Component Type	chassis
Range	PanelSeT
Sustainable Packaging	No
Height Nominal	real: 639.3 mm
Width Nominal	nominal: 500 mm
Accessory / Separate Part Category	mounting accessory
Customs Code	7326908688

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
