Schneider Electric NSYMD86 Symmetrical Mounting Chassis 800x600mm, 6 Rails, Aluminium & Steel
Schneider Electric NSYMD86 Symmetrical Mounting Chassis 800x600mm, 6 Rails, Aluminium & Steel
- MPN: NSYMD86
- PPN: SCH-NSYMD86
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$171.68/ EA
Description

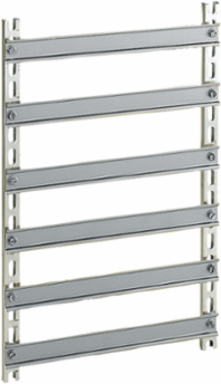

Symmetrical mounting chassis for enclosures (S3D, S3X, PLM, CRN). (6 rails) 800 x 600 mm. Vertical aluminium rails and 6 cross rails (symmetrical DIN). 2 uprights. Steel for rail, aluminum for uprights.
Specifications
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Type Of Rail
- symmetrical DIN
- Range Compatibility
- Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X || Thalassa Thalassa PLM
- Quantity Per Set
- set of 1
- Device Composition
- fixing elements || 6 DIN rail || 2 upright
- Range
- Spacial
Mounting Supportstep slide || spacer || direct fixing on backstuds
Accessory / Separate Part Categorymounting accessory
Product Or Component Typechassis
Device Applicationmulti-purpose
Complementary
- Adjustment
- on step slides, type NSYSDCR…, pitch 12.5 mm
- Height
- real 739.3 mm || nominal 800 mm
- Depth
- real 30 mm
Widthnominal 600 mm || real 550 mm
Materialuprights aluminium || rail steel
Fixing Modescrewed on backstuds || by fixing element
Contractual warranty
- Warranty
- 18 months
