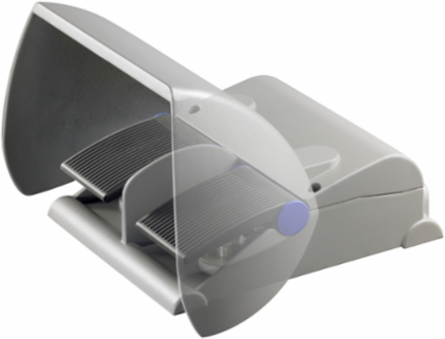

Schmersal 151216987 T2FH 232-11UEDR Foot Switch with Protective Shield, 295 mm Width, 3,850 g Weight
- MPN: 151216987
- PPN: SCM-151216987
CAD
$1429.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T2FH 232-11UEDR Foot Switch with Protective Shield, 295 mm Width, 3,850 g Weight
Features
- 2 contacts per pedal
- Protective shield with wide opening
- double-pedal type
- 2 cable entries M25
- High level of stability
Documentation & Downloads
Specifications
Key Specifications
| Width | 295 mm |
|---|---|
| Depth | 274 mm |
| Height | 189 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 230 VAC |
| Utilisation category DC-13 | 24 VDC |

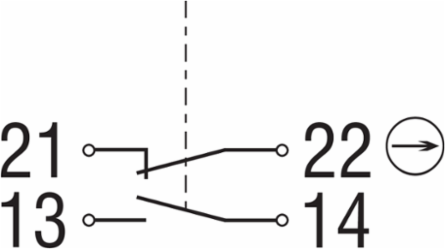

| Switching element | NO contact, NC contact |
| Switching frequency | 3,600 /h |
| Required rated short-circuit current | 1,000 A |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching principle | Slow action with overlapping contacts |

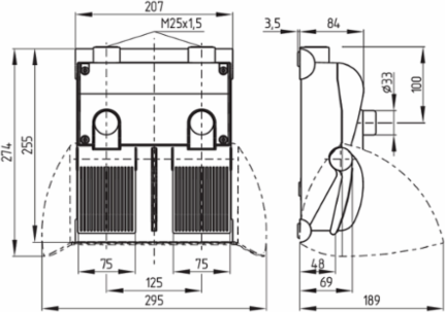

Mechanical data - Dimensions
| Width | 295 mm |
|---|---|
| Depth | 274 mm |
| Height | 189 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 6 kV |
|---|---|
| Degree of pollution | 3 |
Safety classification - Safety outputs
| B | 100,000 Operations |
|---|
General data - Features

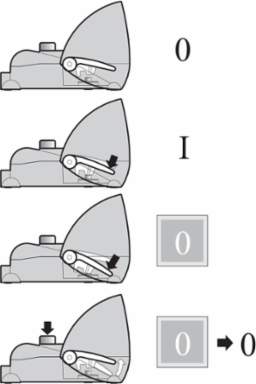

| Latching | Yes |
|---|---|
| Probing possible | Yes |
| Number of pedals, NC | 1 |
| Protective shield | Yes |
|---|---|
| Suitable for EMERGENCY-OFF | Yes |
| Number of pedals, NO | 1 |
General data
| Standards | BG-GS-ET-14 | BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1 |
|---|---|
| Enclosure coating material | powder-coated |
| Material of the pedal | Glass-fibre, reinforced thermoplastic |
| Gross weight | 3,850 g |
| Enclosure material | Aluminium |
|---|---|
| Material of the housing cover | Aluminium |
| Material of the protective shield | Aluminium |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Ambient temperature | -25 ... +60 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Relative humidity, maximum | 95 % |
| Resistance to vibrations | 10 … 150 Hz, amplitude 0.35 mm / 5 g |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable section, maximum | 2.5 mm² |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|
Approvals - Standards
| Certificates | cULus | CCC |
|---|
