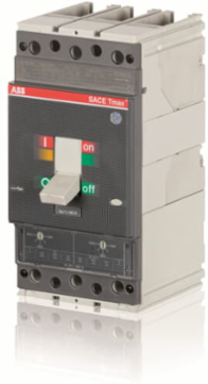

ABB 1SDA063415R1 T4V 250 TMA 160-1600 3p F FC 1150V AC
ABB 1SDA063415R1 T4V 250 TMA 160-1600 3p F FC 1150V AC
- MPN: 1SDA063415R1
- UPC: 804325534864
- PPN: ABB-1SDA063415R1
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMD R 160-1600 A
Specifications
Additional Information
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Operational Voltage
- 1150 V AC1000 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (415 V AC) 200 kA(1000 V AC) 20 kA
- Release
- TMA
- Short-Circuit Performance Level
- V
- Sub-type
- T4
- Version
- F
Power Lossat Rated Operating Conditions per Pole 7.4 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)160 A
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu)250 A
Release TypeTM
StandardsIEC
Terminal Connection TypeFixed Circuit-BreakersFront for Copper Cables
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight2.35 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
- SCIP
- ee7d7399-c9c7-4af4-9973-99d1bcbd3c72 Italy (IT)
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIPb27dc842-acdf-408b-b930-51b0245c8863 France (FR)0c96473e-981c-4574-9e77-e2668d0bdc3f Netherlands (NL)f0ec9bae-e331-460a-bea1-96b80df18949 Spain (ES)e1e6a134-2bad-4caa-a564-1971c6274d18 Netherlands (NL)cb4fe2d3-66d9-4fa7-abfd-1ea897375872 Poland (PL)7d62b552-8338-4c95-9acc-9529bb6da742 Norway (NO)93ab74c0-cdf4-4fcf-8d6f-d5fa8b457ad6 Finland (FI)04e054fe-fafe-4c85-86b7-d3bd04f5e248 Netherlands (NL)be3d1c1e-4508-46c6-8267-9a53993b7eaf Netherlands (NL)a768e7e0-6c5e-4d41-9589-beb969e20e77 Estonia (EE)9d1bda2c-0489-40ad-959d-936688342d57 Greece (GR)a2db3d83-07b2-4af3-9bb8-7e93265a6e07 Portugal (PT)ce4c37d4-8536-4811-bd07-e908b819c146 Bulgaria (BG)fc1684b9-c24e-45ca-8164-bd0bcd7eb313 Sweden (SE)4e7f1b61-3dd5-40e5-8b97-fb39a0790480 Poland (PL)d0690f4d-4852-44a0-8e75-859e057e10e4 France (FR)7028dd79-d606-4f8b-9856-b38aea65fe98 Sweden (SE)5e55bfa1-d0e5-42b0-835c-0c5f0b4d72f4 Germany (DE)35e7f2f3-f6f3-4e06-8790-f5de429732ea Germany (DE)6df2bb81-913b-46e2-83ea-e098e67b813f Germany (DE)9e5c3be5-13ad-4901-bf58-cc52ccc4ad45 Denmark (DK)422deda8-89fd-4d61-8442-5343c9908a8d Germany (DE)8035acb1-98b5-4c89-b2fd-a78368d185bb Croatia (HR)14508eee-f636-4fff-b6dc-a9333d0b93dc Czech Republic (CZ)696fee27-fe6f-41de-bcbc-82e50122291c Poland (PL)dd671326-3c5d-4115-930c-77cff342a839 Netherlands (NL)
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85352100
