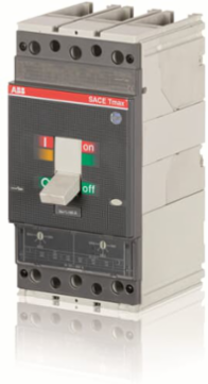

ABB 1SDA063412R1 T4V 250 TMA 80-800 3p F FC 1150V AC
ABB 1SDA063412R1 T4V 250 TMA 80-800 3p F FC 1150V AC
- MPN: 1SDA063412R1
- UPC: 804325573375
- PPN: ABB-1SDA063412R1
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMD R 80-800 A
Specifications
Additional Information
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Operational Voltage
- 1150 V AC1000 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (415 V AC) 200 kA(1000 V AC) 20 kA
- Release
- TMA
- Short-Circuit Performance Level
- V
- Sub-type
- T4
- Version
- F
Power Lossat Rated Operating Conditions per Pole 4.6 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)80 A
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu)250 A
Release TypeTM
StandardsIEC
Terminal Connection TypeFixed Circuit-BreakersFront for Copper Cables
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight2.35 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85352100
