Tripp Lite SM3000RM2UNTAA 3000VA 2.25kW Line-Interactive UPS with LCD, 2U Rackmount, WeBCardLX
- MPN: SM3000RM2UNTAA
- UPC: 037332184214
- PPN: TRP-SM3000RM2UNTAA
CAD
$4054.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

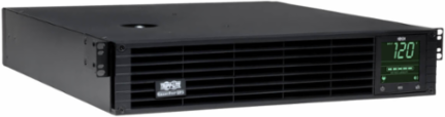

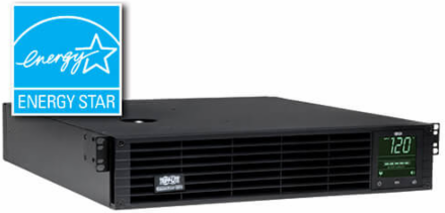

3000VA 2.25kW Line-Interactive UPS with LCD, 2U Rackmount, WeBCardLX
Features
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS
- 120V nominal output during brownouts to 83V and overvoltages to 145V

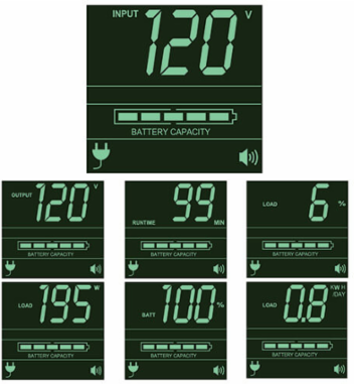

- Interactive LCD, USB, RS232, EPO and pre-installed WEBCARDLX Network Interface
- Hot-swap batteries, 98% efficiency, Sine wave output, 2 switchable load banks
- NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity
- 3000 VA
- Output kW Capacity
- 2.25 kW
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- UPS Type
- Line-Interactive
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Phase
- Single-Phase
- Load Management Receptacles
- Two switchable single-outlet load banks
- AC Mode Efficiency
- 98%
- Storage Temperature Range
- -15 to 50 °C (5 to 122 °F)
- Operating Elevation
- 0 to 3000 m (0 to 10,000 ft)
- Dimensions (H x W x D)
- 3.46 x 17.32 x 19.46 in (88 x 440 x 494 mm)
- Weight
- 62.8 lbs (28.49 kg)
- Output Receptacles
- (8) 5-15/20R, (1) L5-30R
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Battery Recharge Rate
- Less than 4.5 hours from 10% to 90%
- Expandability
- Expandable battery runtime up to 1600W max with external battery packs
- Communications Interfaces
- USB (HID), DB9 Serial, EPO, Pre-installed WEBCARDLX Network Interface Card
- EPO Port
- RJ11 interface with 4 m cable, supports normally open/closed systems
- Overvoltage Correction
- Input voltages between 127 and 145 reduced by 12%
- Severe Undervoltage Correction
- Input voltages between 83 and 95 boosted by 24%
- Compliance
- UL1778, CSA, NOM, FCC Part 15 Category A, RoHS, TAA Compliant
Output Watt Capacity2250 W
Power Factor0.75
Output Voltage Regulation (Line Mode)-14%, +6%
Transfer Time5 ms (AC to battery), 1 ms (battery to AC)
Amperage24A
Recommended Electrical Service30A 120V
Output Circuit BreakersTwo 20A breakers protecting 4 5-15/20R outlets each
Surge Suppression Joule Rating570
Operating Temperature Range0 to 40 °C (32 to 104 °F)
Relative Humidity0 to 95%, non-condensing
Cooling MethodFan
Rack Height2U

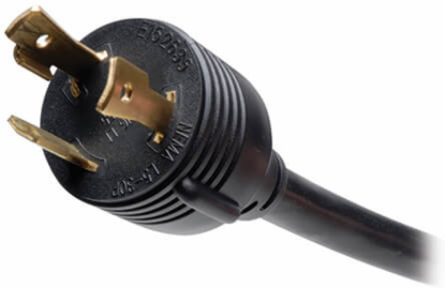

Input Connection TypeNEMA L5-30P
Housing MaterialSteel
Battery AccessFront panel battery access door
Battery System Voltage48 VDC
Network Monitoring PortRJ45 Network port, Micro-USB Configuration/Console port, USB A port
SNMP CompatibilitySNMP v1, v2c, v3
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with input voltage range 83 to 145V
Undervoltage CorrectionInput voltages between 108 and 96 boosted by 12%
Cold StartSupported
