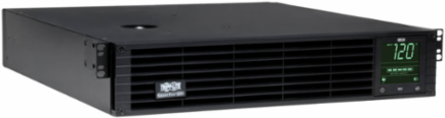

Tripp Lite SM3000RMXL2UTAA TAA SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

TAA SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9 - https://media.province-electric.com/tripplite/2020q1/43c86fe1811b9c470a27c7013c6288fb776c3e5e-medium.png

TAA SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

Tripp Lite SM3000RMXL2UTAA TAA SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

MPN: SM3000RMXL2UTAA
UPC: 037332153609
PPN: TRP-SM3000RMXL2UTAA

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3427.16/ EA

Qty:

Loading add to cart quantity...

Description

TAA SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

Features

3kVA / 3000VA / 2880W line interactive 2U rack/tower UPS, Sine Wave
Extended runtime options up to 2880W, 0.9 Power Factor, Interactive LCD interface
USB, RS232, EPO and slot for network management card options
NEMA L5-30P input; 8 NEMA 5-15/20R & 1 L5-30R outlets
TAA Compliant for GSA Schedule purchases
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
2-year limited warranty
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

AC Suppression Response Time: Instantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 3 min. (2880w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC58-2U

Battery Replacement Description: Hot-swappable, replaceable batteries

Half Load Runtime (min.)10 min. (1440w)

External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 5 hours from 10 to 90%

Battery AccessFront panel battery access door

Expandable RuntimeYes

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth with External Battery Pack (cm): 66

Minimum Required Rack Depth without External Battery Pack (cm): 62

Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm): 483

Primary UPS Width (mm): 445

Shipping Dimensions (hwd / in.): 8.70 x 24.10 x 22.00

UPS Housing Material: Steel

UPS Power Module Weight (kg): 29.03

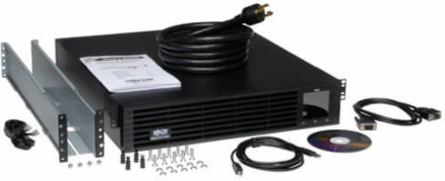

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Minimum Required Rack Depth with External Battery Pack (in.)26

Minimum Required Rack Depth without External Battery Pack (in.)24.5

Primary Form FactorRackmount

Primary UPS Height (mm)89

Rack Height2U

Shipping Weight (lbs.)90.00

UPS Power Module Dimensions (hwd, in.)3.50 x 17.50 x 19.00

UPS Power Module Weight (lbs.)64

User Interface, Alerts & Controls

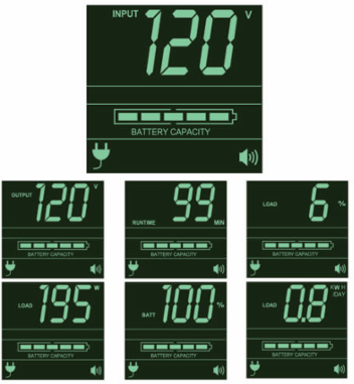

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%

Input

Rated input current (Maximum Load): 24A

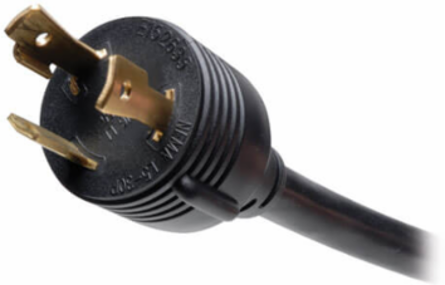

UPS Input Connection Type: L5-30P

Recommended Electrical Service: 30A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)10

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 3000

Output Watt Capacity (Watts): 2880

Power Factor: .96

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/-5%

Output Circuit Breakers: Two 20A output breakers protect 4 5-15/20R outlets each

Output AC Waveform (Battery Mode): Pure Sine wave

Output Receptacles: (8) 5-15/20R; (1) L5-30R

Output kVA Capacity (kVA)3.00

Output kW Capacity (kW)2.88

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)+6%, -14%

Load Management ReceptaclesTwo switchable single outlet 5-15/20R load banks

Output AC Waveform (AC Mode)Pure Sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksYes

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX

PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

Communications CableUSB, DB9 and EPO cabling included

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1736

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)409

Audible Noise45 dBA maximum, front side 1m

Overview

UPC Code: 037332153609

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

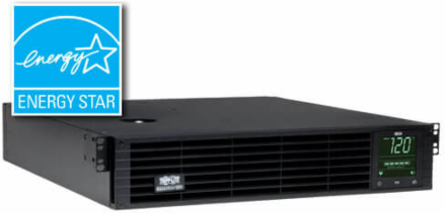

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

High Availability UPS FeaturesHot swappable batteries

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
