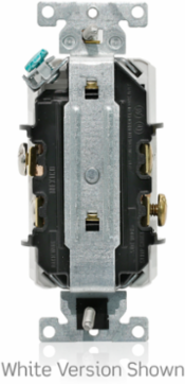

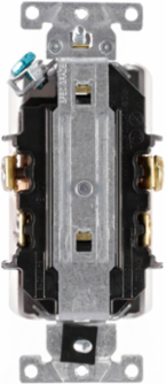

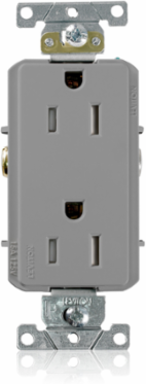

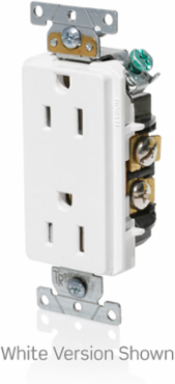

Leviton TDR15-GY Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt, Gray
- MPN: TDR15-GY
- UPC: 078477392126
- PPN: LEV-TDR15-GY
CAD
$17.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Shutter Mechanism
- Acetal
- Terminal Accom.
- #14 AWG - #10 AWG
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Termination
- Back or Side Wire
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line ContactsPhosphor Bronze Triple Wipe 0.031
Product IDRatings are permanently marked on device
Strap MaterialSteel (Galvanized G60)
Terminal ClampsBrass
Terminal Screws#8 Triple-Drive Brass
Wire TypeStranded or Solid
Mechanical Specifications
- Brand
- Decora Plus
- Color / Feature
- Gray
- Feature 2
- Tamper-Resistant
- Grade
- Heavy-Duty Industrial Specification Grade
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Wire Type
- Stranded or Solid
ColorGray
Device TypeDuplex Receptacle Outlet
Feature 4Smooth Face
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
TerminationBack or Side Wire
AC Horsepower Rating
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 3000 V minimum
Horsepower Rating1/2 HP
Temperature RiseMax 30 °C temperature rise at full rated current
Wire3
Product Features
- Certification/Listing
- cULus, NOM-ANCE
Warranty
- Horsepower Rating
- 1/2 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Shutter Mechanism
- Acetal
- Terminal Clamps
- Brass
ColorGray
FlammabilityRated V-0 per UL 94
Ground Contacts0.030" Brass
Line ContactsPhosphor Bronze Triple Wipe 0.031
Operating Temperature-40°C to 75°C
Strap MaterialSteel (Galvanized G60)
Terminal Screws#8 Triple-Drive Brass
Electrical Specifications
- Amperage
- 15 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C temperature rise at full rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
