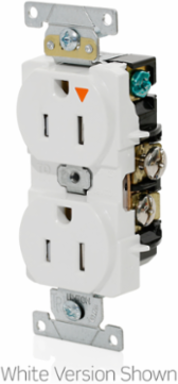

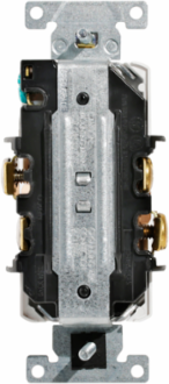

Leviton T5262-IG Heavy-Duty Tamper-Resistant Isolated Ground Duplex Receptacle 15 Amp, 125 Volt
- MPN: T5262-IG
- UPC: 078477894774
- PPN: LEV-T5262-IG
CAD
$31.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

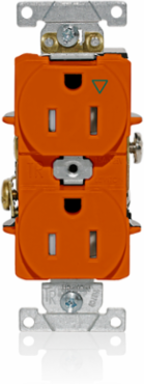

Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Orange
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Shutter Mechanism
- Acetal
- Terminal Accom.
- #14 AWG - #10 AWG
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Termination
- Back or Side Wire
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Product IDRatings are permanently marked on device
Strap MaterialSteel (Galvanized G60)
Terminal ClampsBrass
Terminal Screws#8 Triple-Drive Brass
Wire TypeStranded or Solid
Mechanical Specifications
- Color
- Orange
- Device Type
- Duplex Receptacle Outlet
- Feature 4
- Smooth Face
- Grade
- Heavy-Duty Industrial Specification Grade
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Wire Type
- Stranded or Solid
Color / FeatureOrange
Feature 2Tamper-Resistant
FunctionIsolated Ground
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
TerminationBack or Side Wire
AC Horsepower Rating
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 3000 V minimum
Horsepower Rating1 HP
Temperature RiseMax 30 °C temperature rise at full rated current
Wire3
Warranty
- Horsepower Rating
- 1 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Flammability
- Rated V-0 per UL 94
- Ground Contacts
- 0.030" Brass
- Line Contacts
- 0.030" Phosphor Bronze
- Operating Temperature
- -40°C to 75°C
- Strap Material
- Steel (Galvanized G60)
- Terminal Screws
- #8 Triple-Drive Brass
Face MaterialPBT Polyester Blend
Ground ClipsBrass
Grounding Screw#8 Hex Head, Triple-Drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Shutter MechanismAcetal
Terminal ClampsBrass
Electrical Specifications
- Amperage
- 15 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C temperature rise at full rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
