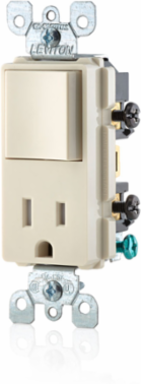

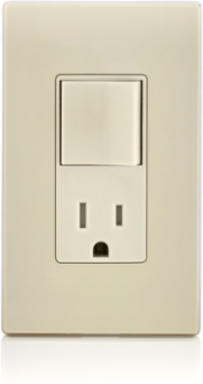

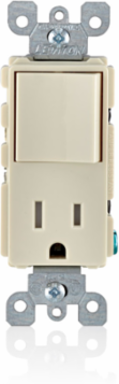

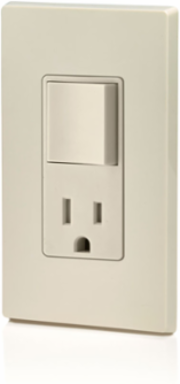

Leviton T5625-T 15 Amp Decora Tamper Resistant Switch/Outlet Combination Device, 120 Volt, Light Almond
- MPN: T5625-T
- UPC: 078477382363
- PPN: LEV-T5625-T
CAD
$37.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120 Volt, Tamper-Resistant, Decora 5-15R AC Combination Switch, Commercial Grade, Grounding, 2-Pole, 3-Wire, Side Wired – Light Almond
Features
- Leviton's Decora Combination Switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Actuator Material | Thermoplastic |
|---|---|
| Body Material | Thermoplastic |
| Feature | Tamper Resistant |
| HP Rating | 1-1/2HP-120V |
| NEMA | 5-15R |
| Strap Material | Steel |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 120 VAC |
| Amperage | 15 A |
|---|---|
| Color | Light Almond |
| Grounding | Grounding |
| Max. Amperage | 12 Amp |
| Series | 5625 |
| Termination | Side |
| Type | Switch & Receptacle |
| Warranty | 2-Year Limited |
