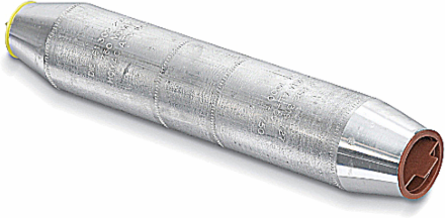

Blackburn ATC 4/0 R 2/0 TN Tin-Plated Aluminum Tapered Reducer Splice 4 Inch for 4/0 to 2/0 Conductors
Blackburn ATC 4/0 R 2/0 TN Tin-Plated Aluminum Tapered Reducer Splice 4 Inch for 4/0 to 2/0 Conductors
- MPN: ATC 4/0 R 2/0 TN
- PPN: T-B-ATC 4/0 R 2/0 TN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$213.46/ EA
Description
Tin-Plated Aluminum Tapered Compression Reducer for Aluminum and Copper Conductors, 4/0 to 2/0 Stranded
Features
- Solid Center Stop Ensures Proper Cable Insertion, Prevents Moisture Migration.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Solid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation.
- Standard
- ANSI C119.4
- Conductor Range
- 4/0 to 2/0 stranded
- Finish
- Bare
IGCC4668 Wire or cable compression connector
TypeTapered Reducer Splice
ApplicationTapered ends enable use in High-Voltage Applications up to 69kV.
Size4 inch long
MaterialAluminum
InsulationNo
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 14x9.625x7.75
Outer Quantity200
Weight Uom1 lbs. Each
