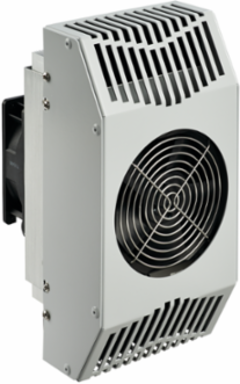

nVent Hoffman TE090624011 Thermoelectric Cooler TE09 24V with Shroud, 9.29x5.02x6.94, Brushed, SS304
- MPN: TE090624011
- UPC: 783510210762
- PPN: HOF-TE090624011
- UNSPSC: 40101723
CAD
$2464.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE09 24V with Shroud, TE090624011 item measures 9.29x5.02x6.94in with a material of SS304 finish Brushed.
Features
- Operates on the Peltier effect for cooling or heating
- Contains no refrigerant, making it earth friendly
- Filterless design reduces maintenance requirements
- Compressor-free air conditioning for demanding indoor and outdoor applications
- Prewired with simple terminal block for easy wiring connections
- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 128
- Nominal Voltage
- 24
- Nominal Capacity Watts
- 52
- Max Current
- 4.4
- Material
- Stainless Steel 304
- Thickness (T)
- 1.52
- BTU Rating
- 178
- Operating Voltage
- 24 VDC
- Operating Temperature
- -40 to 131 deg F
Height (H)236
Depth (D)176
Nominal Capacity Btu/h178
Voltage DC18
Protection RatingNEMA Type 12
FinishBrushed #4
Weight10
Housing MaterialStainless Steel
Power Consumption52 W
Dimensions9.29 x 5.02 x 6.94 in
