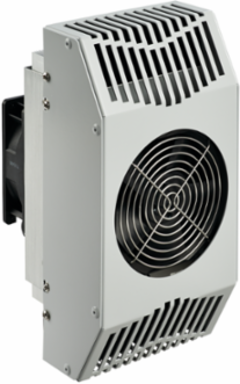

Nvent Hoffman TE121024011 Thermoelectric Cooler TE12 24V with Shroud, 12.00x6.18x7.43, Brushed, SS304
Nvent Hoffman TE121024011 Thermoelectric Cooler TE12 24V with Shroud, 12.00x6.18x7.43, Brushed, SS304
- MPN: TE121024011
- UPC: 783510210724
- PPN: HOF-TE121024011
- UNSPSC: 40101723
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2937.85/ EA
Description
Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE12 24V with Shroud, TE121024011 item measures 12.00x6.18x7.43in with a material of SS304 finish Brushed.
Features
- Operates on the Peltier effect for cooling or heating
- Contains no refrigerant, making it earth friendly
- Filterless design reduces maintenance requirements
- Compressor-free air conditioning for demanding indoor and outdoor applications
- Prewired with simple terminal block for easy wiring connections
- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 157
- Nominal Voltage
- 24
- Nominal Capacity Watts
- 94
- Max Current
- 8.5
- Material
- Stainless Steel 304
- Thickness (T)
- 1.52
- BTU Rating
- 321
- Operating Voltage
- 24 VDC
- Operating Temperature
- -40 to 131 deg F
Height (H)305
Depth (D)189
Nominal Capacity Btu/h321
Voltage DC18
Protection RatingNEMA Type 12
FinishBrushed #4
Weight15.1
Housing MaterialStainless Steel
Power Consumption94 W
Dimensions12 x 6.18 x 7.43 in
