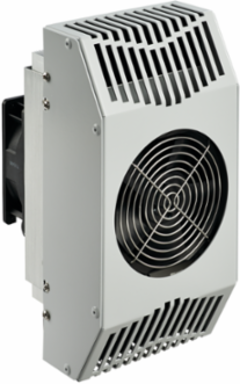

nVent Hoffman TE121048010 Thermoelectric Cooler TE12 48V with Shroud, 12.00x6.18x7.43, Lt Gray, Steel

MPN: TE121048010
UPC: 783510210717
PPN: HOF-TE121048010
UNSPSC: 40101723

$2739.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE12 48V with Shroud, TE121048010 item measures 12.00x6.18x7.43in with a material of Steel colored Lt Gray.

Features

Operates on the Peltier effect for cooling or heating
Contains no refrigerant, making it earth friendly
Filterless design reduces maintenance requirements
Compressor-free air conditioning for demanding indoor and outdoor applications
Prewired with simple terminal block for easy wiring connections
Shrouded and unshrouded models included in standard packages
Operating temperature range -40 C (-40 F) to 55 C (131 F)
Partial recess mount
DC Powered operation for 24V and 48V applications
Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	157
Nominal Voltage	48
Nominal Capacity Watts	94
Max Current	4.4
Material	Mild Steel
Color	Light Gray
Thickness (T)	1.52
BTU Rating	321
Operating Voltage	48 VDC
Operating Temperature	-40 to 131 deg F

Height (H)	305
Depth (D)	189
Nominal Capacity Btu/h	321
Voltage DC	40
Protection Rating	NEMA Type 12
Finish	Powder Coated
Color Code	RAL 7035
Weight	14.8
Housing Material	Mild Steel
Power Consumption	94 W
Dimensions	12 x 6.18 x 7.43 in
