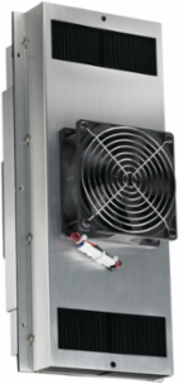

nVent Hoffman TE162048020 Thermoelectric Cooler TE16 48V without Shroud, 15.75x7.09x7.25 Anodized Aluminum

MPN: TE162048020
UPC: 783510210649
PPN: HOF-TE162048020
UNSPSC: 40101723

$2696.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE16 48V without Shroud, TE162048020 item measures 15.75x7.09x7.25in with a material of Aluminum finish Anodized.

Features

Operates on the Peltier effect for cooling or heating
Contains no refrigerant, making it earth friendly
Filterless design reduces maintenance requirements
Compressor-free air conditioning for demanding indoor and outdoor applications
Prewired with simple terminal block for easy wiring connections
Shrouded and unshrouded models included in standard packages
Operating temperature range -40 C (-40 F) to 55 C (131 F)
Partial recess mount
DC Powered operation for 24V and 48V applications
Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	180
Nominal Voltage	48
Nominal Capacity Watts	166
Max Current	7.6
Material	Aluminum
Thickness (T)	1.52
BTU Rating	567
Operating Voltage	48 VDC
Operating Temperature	-40 to 131 deg F

Height (H)	400
Depth (D)	184
Nominal Capacity Btu/h	567
Voltage DC	40
Protection Rating	NEMA Type 12
Finish	Anodized
Weight	18.3
Housing Material	Aluminum
Power Consumption	166 W
Dimensions	15.75 x 7.09 x 7.25 in
