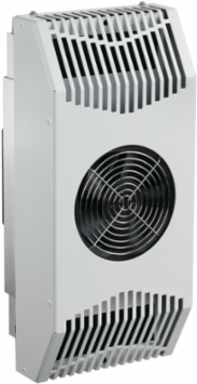

nVent Hoffman TE162024010 Thermoelectric Cooler TE16 24V with Shroud, 15.93x7.35x7.25, Lt Gray, Steel
- MPN: TE162024010
- UPC: 783510210779
- PPN: HOF-TE162024010
- UNSPSC: 40101723
CAD
$3024.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE16 24V with Shroud, TE162024010 item measures 15.93x7.35x7.25in with a material of Steel colored Lt Gray.
Features
- Operates on the Peltier effect for cooling or heating
- Contains no refrigerant, making it earth friendly
- Filterless design reduces maintenance requirements
- Compressor-free air conditioning for demanding indoor and outdoor applications
- Prewired with simple terminal block for easy wiring connections
- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 187
- Nominal Voltage
- 24
- Nominal Capacity Watts
- 166
- Max Current
- 14.7
- Material
- Mild Steel
- Color
- Light Gray
- Thickness (T)
- 1.52
- BTU Rating
- 567
- Operating Voltage
- 24 VDC
- Operating Temperature
- -40 to 131 deg F
Height (H)405
Depth (D)185
Nominal Capacity Btu/h567
Voltage DC18
Protection RatingNEMA Type 12
FinishPowder Coated
Color CodeRAL 7035
Weight22
Housing MaterialMild Steel
Power Consumption166 W
Dimensions15.93 x 7.35 x 7.27 in
