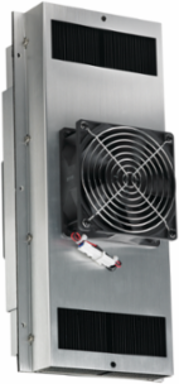

nVent Hoffman TE162024020 Thermoelectric Cooler TE16 24V without Shroud, 15.75x7.10x7.25 Anodized Aluminum
- MPN: TE162024020
- UPC: 783510210687
- PPN: HOF-TE162024020
- UNSPSC: 40101723
CAD
$2696.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Thermoelectric coolers utilize Peltier effects for closed-loop cooling in small enclosures. This Thermoelectric Cooler TE16 24V without Shroud, TE162024020 item measures 15.75x7.10x7.25in with a material of Aluminum finish Anodized.
Features
- Operates on the Peltier effect for cooling or heating
- Contains no refrigerant, making it earth friendly
- Filterless design reduces maintenance requirements
- Compressor-free air conditioning for demanding indoor and outdoor applications
- Prewired with simple terminal block for easy wiring connections
- Shrouded and unshrouded models included in standard packages
- Operating temperature range -40 C (-40 F) to 55 C (131 F)
- Partial recess mount
- DC Powered operation for 24V and 48V applications
- Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 180
- Nominal Voltage
- 24
- Nominal Capacity Watts
- 166
- Max Current
- 14.7
- Material
- Aluminum
- Thickness (T)
- 1.52
- BTU Rating
- 567
- Operating Voltage
- 24 VDC
- Operating Temperature
- -40 to 131 deg F
Height (H)400
Depth (D)184
Nominal Capacity Btu/h567
Voltage DC18
Protection RatingNEMA Type 12
FinishAnodized
Weight18
Housing MaterialAluminum
Power Consumption166 W
Dimensions15.75 x 7.09 x 7.25 in
