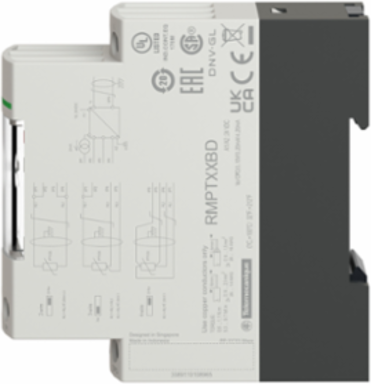

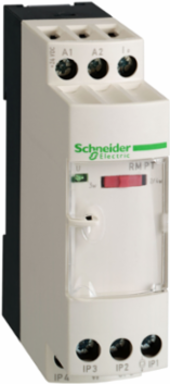

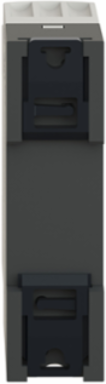

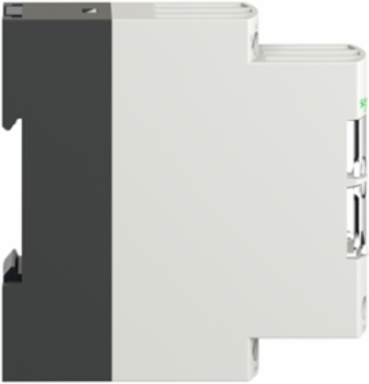

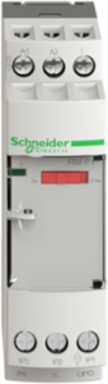

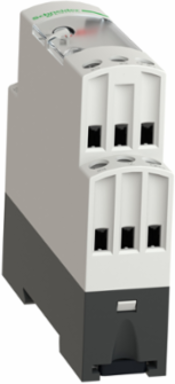

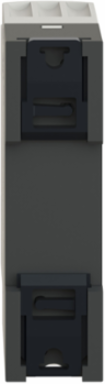

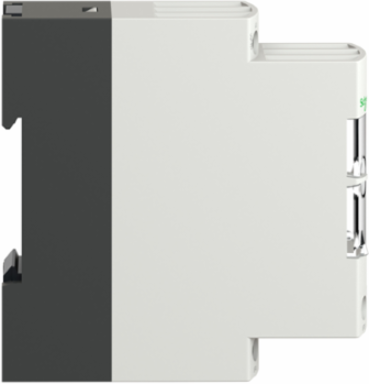

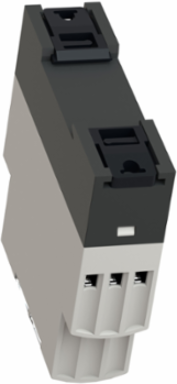

Schneider Electric RMPT73BD Harmony Analog Temperature Transmitter, 0-500 C, IP50 Protection

MPN: RMPT73BD
PPN: SCH-RMPT73BD

$176.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Analogue Output Current2	-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken, 22-30 mA no input or input wire broken
Current Consumption	<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output
Measurement Error	+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.1 % of full scale+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.1 % of full scale
Repeat Accuracy	+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C
Certificate Agency	GL, UL, CSA
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Fixing Mode	clip-on (35 mm symmetrical DIN rail)fixed (mounting plate)
Marking	CE
Product Or Component Type	converter for Optimum Pt100 probes
Resistance To Fast Transients	1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply)
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Temperature Coefficient	150 ppm/°C
Vibration Resistance	5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
[Ui] Rated Insulation Voltage	2000 V
Package Weight(Lbs)	109.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Analogue Output Voltage2	-15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken
Fire Resistance	850 °C IEC 60695-2-1, 850 °C UL
Protection Type	overvoltage protection on output (+/- 30 V), reverse polarity protection on power supply, short-circuit protection on output, reverse polarity protection on output
Safety Reliability Data	MTTFd = 43.9 years, B10d = 40564
Disturbance Radiated/Conducted	CISPR 11, CISPR 22 group 1 - class B
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1409020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Electromagnetic Compatibility	electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Local Signalling	LED (green) for power ON
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony Analog
Returnability	Yes
Sustainable Packaging	Yes
Tightening Torque	0.6-1.1 N.m
Pep Code	ENVPEP1607005EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109160

Environment Attributes Main

Ambient Air Temperature For Operation	0-50 °C mounting side by side, 0-60 °C 2 cm spacing
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI1409020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1607005EN
Ip Degree Of Protection	IP20 terminal block)IP50 housing)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1607005EN
