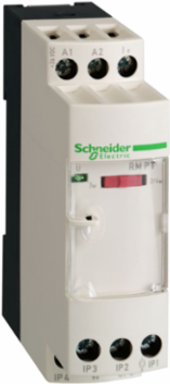

Schneider Electric RMPT70BD Harmony Analog Temperature Transmitter, 0-500 C, 24V DC, 0.12kg
- MPN: RMPT70BD
- PPN: SCH-RMPT70BD
CAD
$216.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Analog Temperature Transmitter, 0-500 C, 24V DC, 0.12kg
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Analogue Output Current2 | -30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken, 22-30 mA no input or input wire broken |
| Current Consumption | <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output |
| Measurement Error | +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference)+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference) |
| Repeat Accuracy | +/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C |
| Certificate Agency | UL, CSA, GL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | clip-on (35 mm symmetrical DIN rail)fixed (mounting plate) |
| Marking | CE |
| Product Or Component Type | converter for Universal Pt100 probes |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Temperature Coefficient | 150 ppm/°C |
| Vibration Resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| [Ui] Rated Insulation Voltage | 2000 V |
| Package Weight(Lbs) | 108.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Analogue Output Voltage2 | -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken |
| Fire Resistance | 850 °C IEC 60695-2-1, 850 °C UL |
| Protection Type | reverse polarity protection on output, overvoltage protection on output (+/- 30 V), reverse polarity protection on power supply, short-circuit protection on output |
| Safety Reliability Data | MTTFd = 32.9 years, B10d = 30437 |
| Disturbance Radiated/Conducted | CISPR 11, CISPR 22 group 1 - class B |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Electromagnetic Compatibility | electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Local Signalling | LED (green) for power ON |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Analog |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Tightening Torque | 0.6-1.1 N.m |
| Pep Code | ENVPEP1607005EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C mounting side by side, 0-60 °C 2 cm spacing |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409020EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1607005EN |
| Ip Degree Of Protection | IP20 terminal block)IP50 housing) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1607005EN |
General Attributes
| Product Or Component Type | converter for Universal Pt100 probes |
|---|
| Range Of Product | Harmony Analog |
|---|
ETIM
| ETIM 8 | EC002081 |
|---|
| ETIM 9 | EC002081 |
|---|
Output Attributes
| Analogue Output Type | current 0...20 mA, current 4...20 mAvoltage 0...10 V |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | RTD 0...500 °C/32...932 °F Pt 100 2, 3 or 4 wires |
|---|
